APAC Commercial & Industrial HVAC

APAC Commercial & Industrial HVAC is a brochure-level product family covering packaged and split ducted cooling systems for heavy commercial and industrial sites, with epoxy-coated coils, scroll compressors, EC indoor fans, configurable factory options, and model ranges from 12 kW to 95 kW.

Brand APAC

Model Commercial & Industrial HVAC

Type Commercial and industrial packaged and split ducted HVAC

Capacity Packaged and split ducted cooling lineup from 12 to 95 kW across multiple cabinet formats

Source Page Download Brochure

Key Features

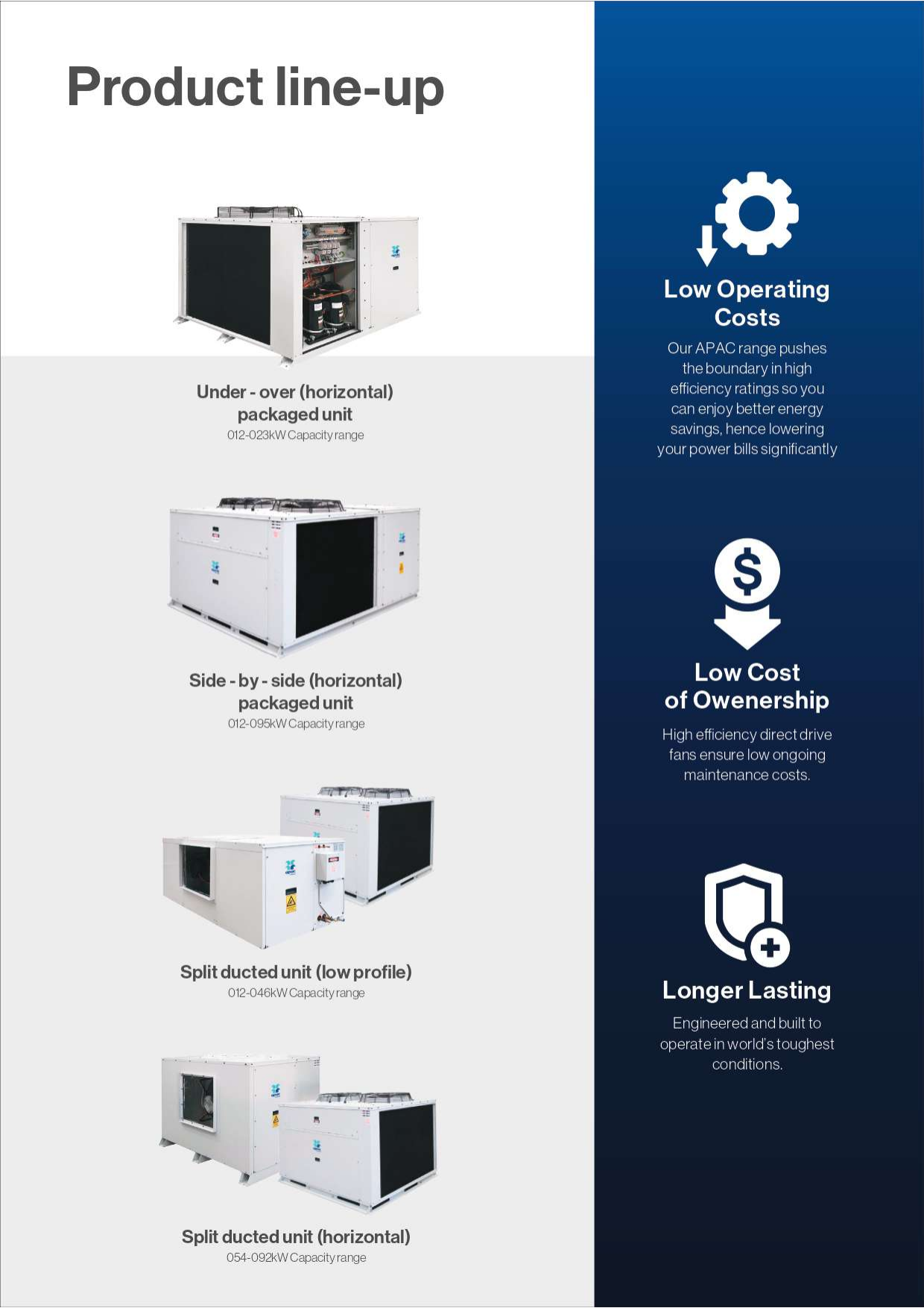

Broad commercial lineup

The brochure covers under-over horizontal packaged units, side-by-side horizontal packaged units, low-profile split ducted units, and horizontal split ducted units, giving APAC multiple cabinet formats for different plantroom and roof layouts.

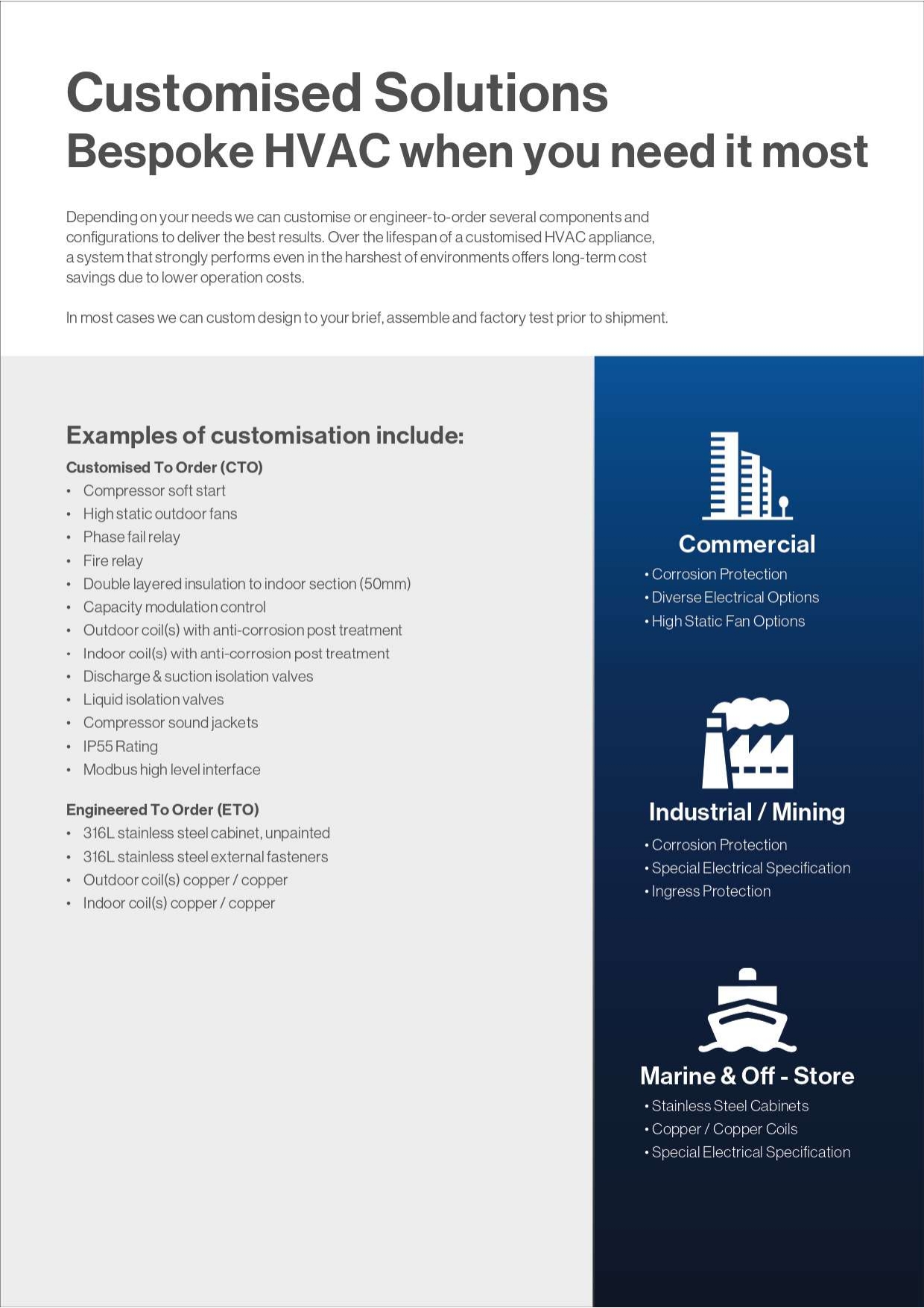

Factory options for demanding projects

APAC highlights customised-to-order and engineered-to-order options including compressor soft start, high-static outdoor fans, Modbus interface, anti-corrosion coil treatments, stainless-steel cabinets, and copper-copper coil configurations.

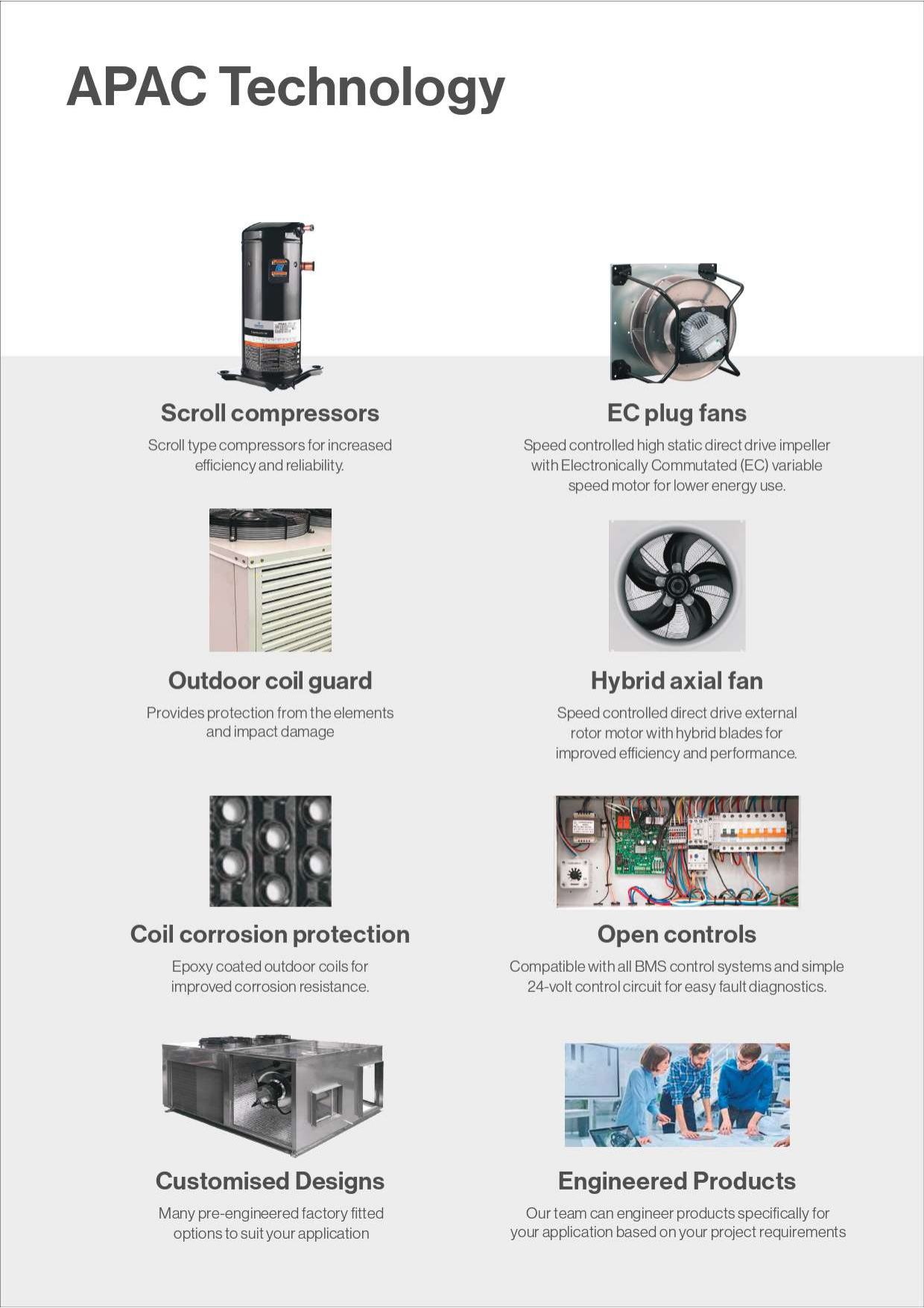

High-efficiency component platform

The technology pages call out scroll compressors, EC plug or EC blower indoor fans, hybrid axial outdoor fans, epoxy-coated outdoor coils, and open controls compatible with BMS systems.

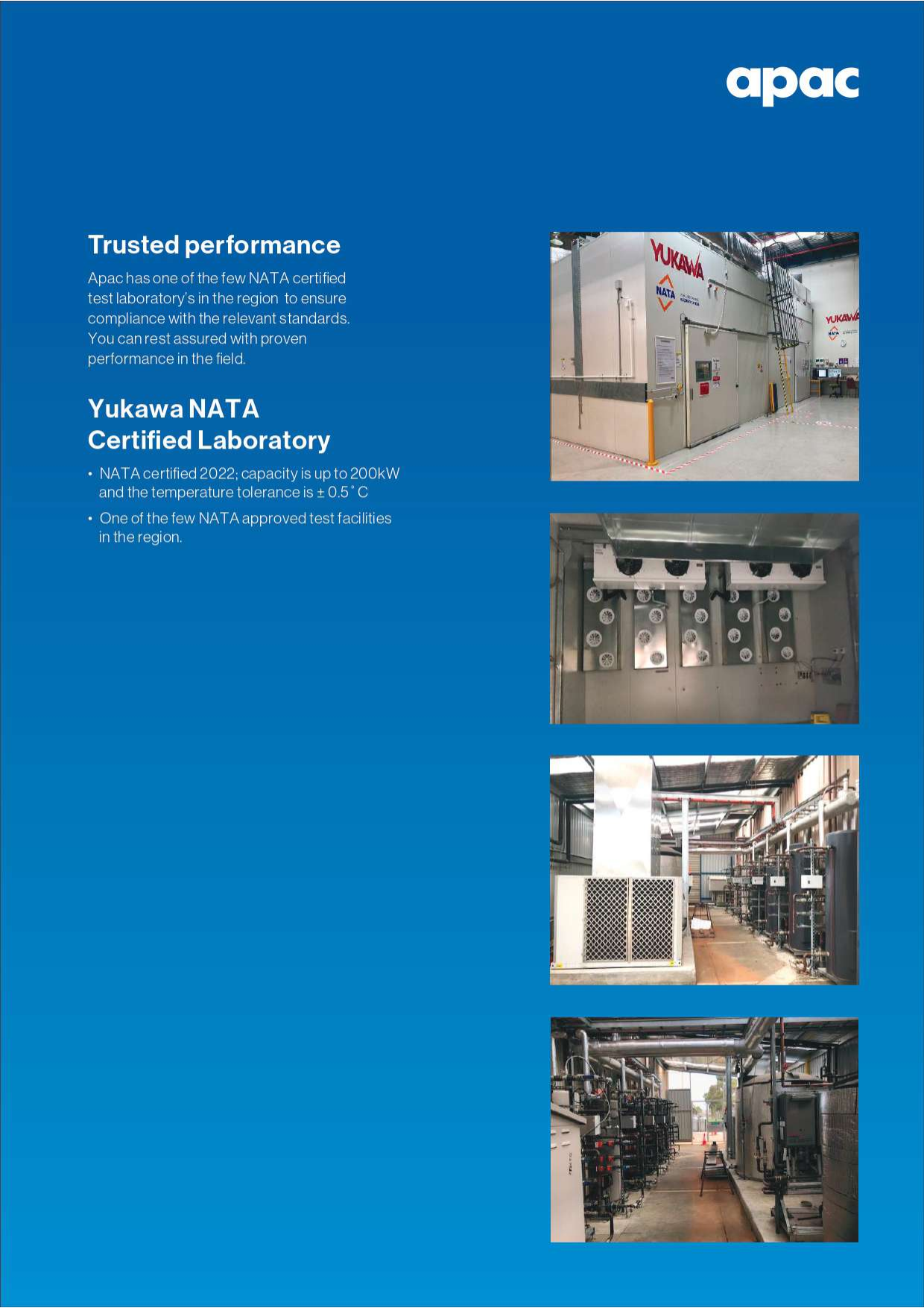

Regional manufacturing and testing support

The brochure positions APAC within the Rinnai group, references manufacturing in Malaysia, and highlights a NATA-certified laboratory with testing capability up to 200 kW.

Project Archives with APAC HVAC

No published project references are linked to this product yet.

Specifications

Brochure scope: APAC commercial and industrial cooling-only packaged and split ducted systems
Compressor type: Scroll compressors across the documented lineup
Outdoor coil treatment: 1000-hour epoxy-coated outdoor coils are listed as a standard feature
Controls: Open controls with compatibility for BMS systems, plus Modbus high-level interface as a factory option
Power supply reference: 400-415 V / 3Ph + N / 50 Hz appears across the shown cooling-only model tables
Operating range reference: Cooling tables in the brochure show outdoor operating limits up to +50 or +52 degrees C depending on unit family
Factory option examples: Compressor soft start, high-static outdoor fans, fire relay, phase-fail relay, sound jackets, IP55 rating, anti-corrosion treatments, and stainless-steel build options
Brochure source: RMM Product Brochure (MB001382A)2026_NCA.pdf shared by Natural Cool Asia

Specification Tables

APAC Product Line-up Snapshot

Swipe sideways to view the full table.

Product family	Configuration	Published capacity range	Brochure notes
Under-over packaged unit	Horizontal packaged unit	012-023 kW	Cooling-only table shown in brochure with scroll compressor and EC indoor fan
Side-by-side packaged unit	Horizontal packaged unit	012-095 kW	Brochure lineup page shows this as the broadest packaged range
Split ducted unit	Low profile	012-046 kW	Indoor section supports front or top supply handing options
Split ducted unit	Horizontal	054-092 kW	Higher-capacity split ducted configuration for heavy commercial loads

Documented Cooling Table Extracts

Swipe sideways to view the full table.

Family	Model band	Cooling capacity	EER range	Compressor / circuit notes
Under-over packaged unit	012-023	12.57 to 22.89 kW total cooling	3.32 to 3.70	Scroll compressor, single circuit
Low-profile split ducted unit	012-046	12.57 to 46.00 kW total cooling	3.07 to 3.70	Scroll compressor, single circuit
Horizontal split ducted unit	054-092	58.48 to 96.39 kW total cooling	3.13 to 3.42	Scroll compressors, dual-circuit platform

Typical Applications

Factories, warehouses, industrial buildings, and heavy commercial premises that need packaged or split ducted cooling
Replacement projects where existing commercial rooftop or ducted systems need a more configurable upgrade path
Sites that require corrosion protection, high-static fan options, or engineer-to-order cabinet and coil configurations

Product Collateral

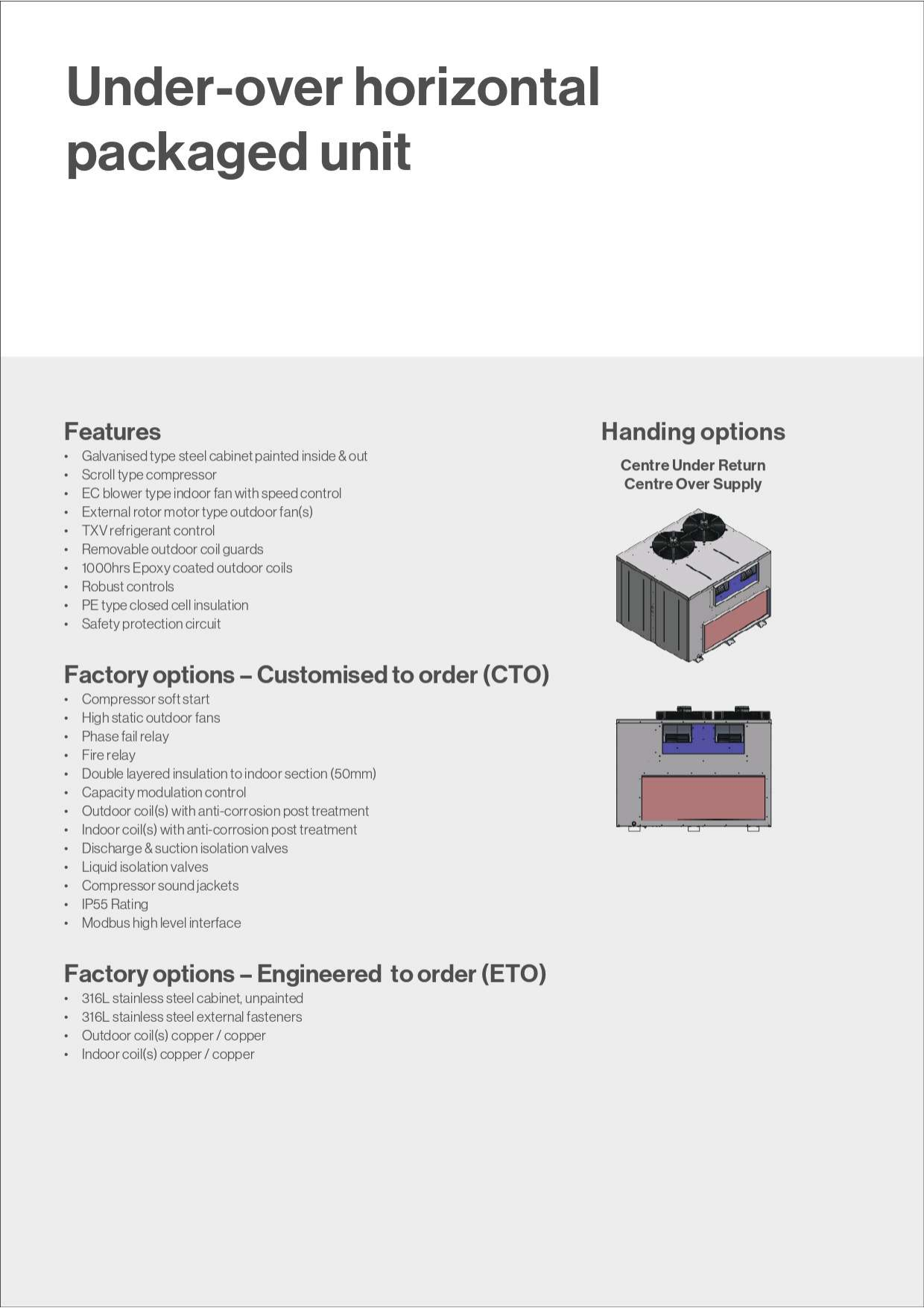

Under-over horizontal packaged unit feature page

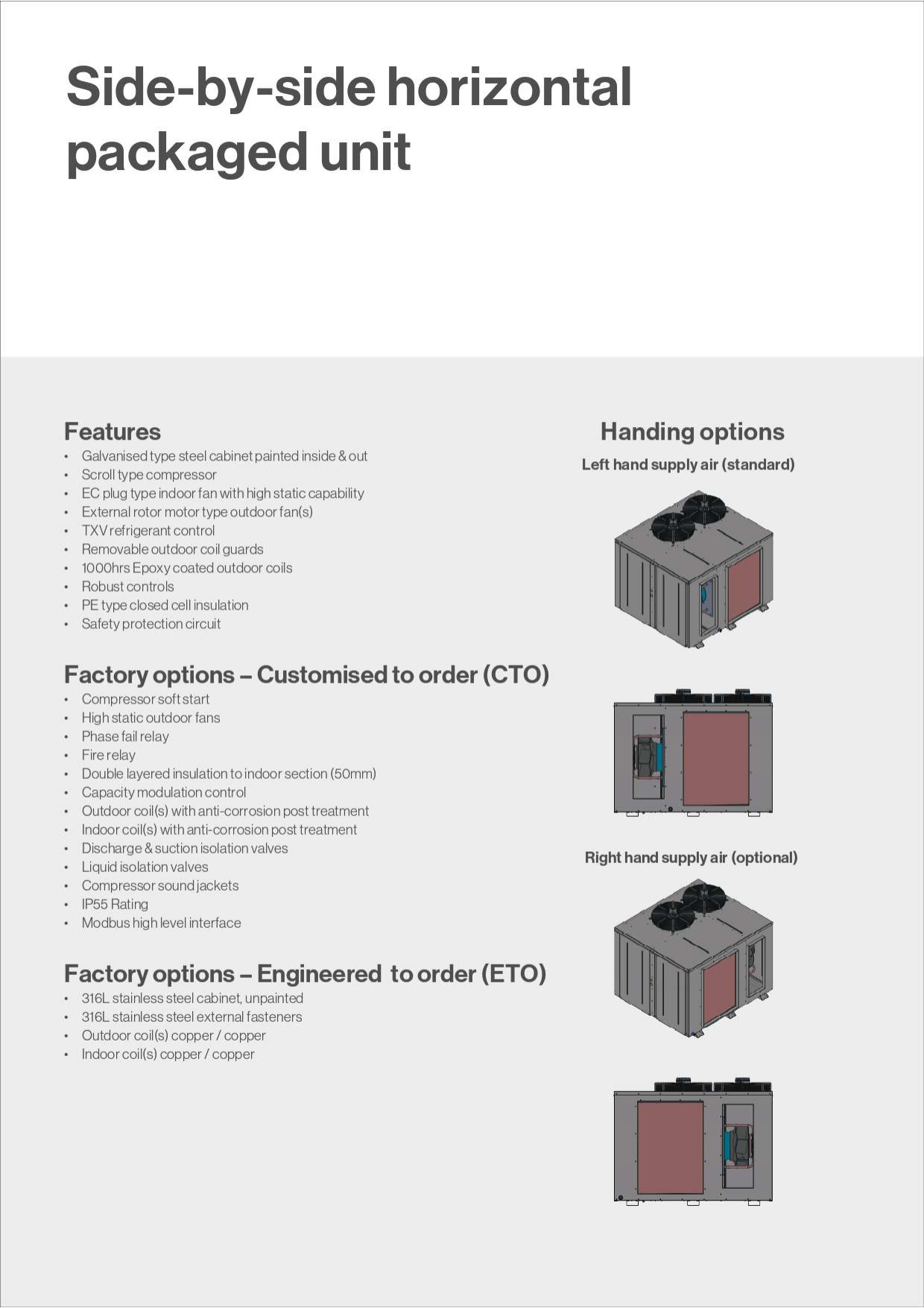

Side-by-side horizontal packaged unit feature page

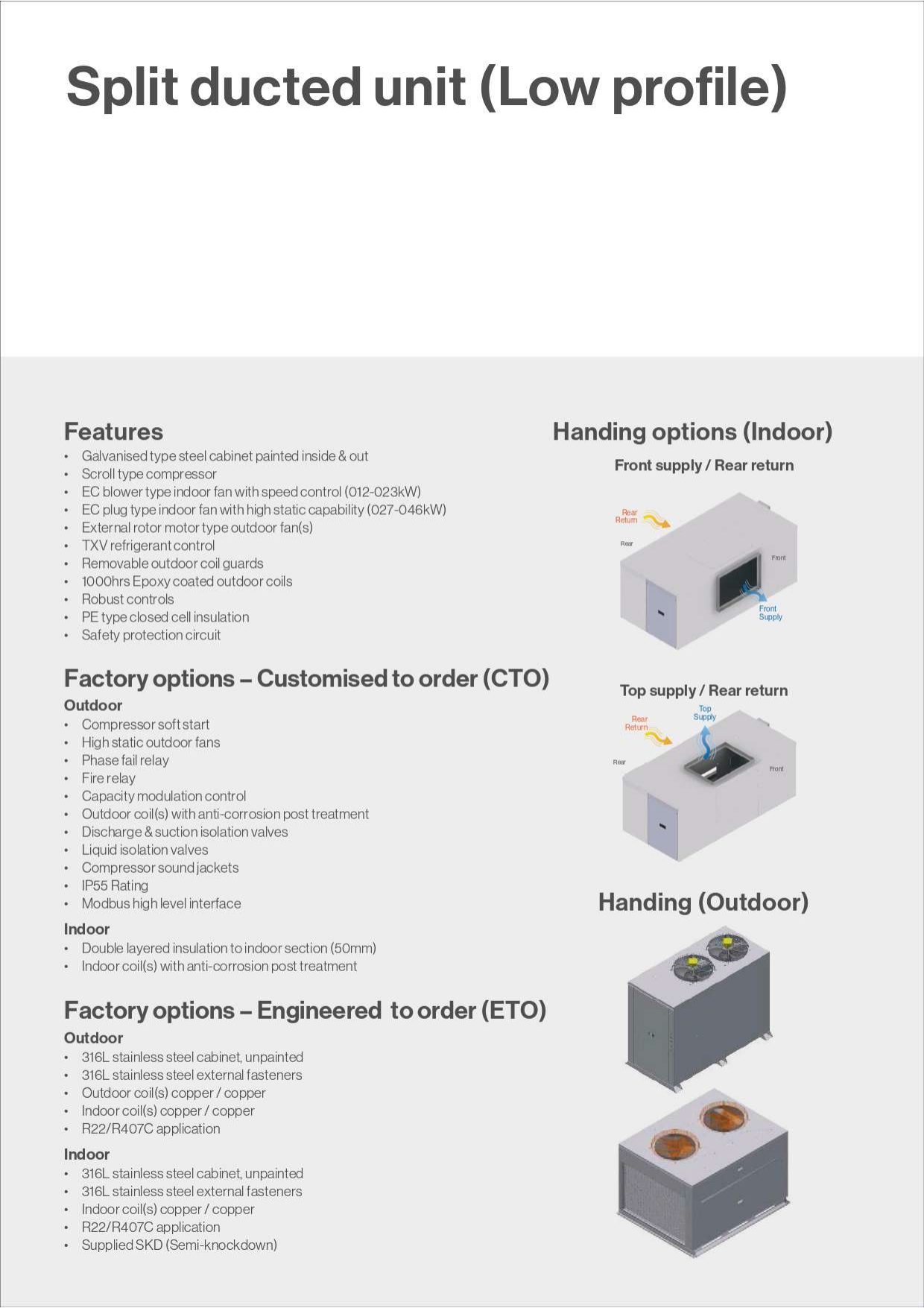

Low-profile split ducted unit feature page

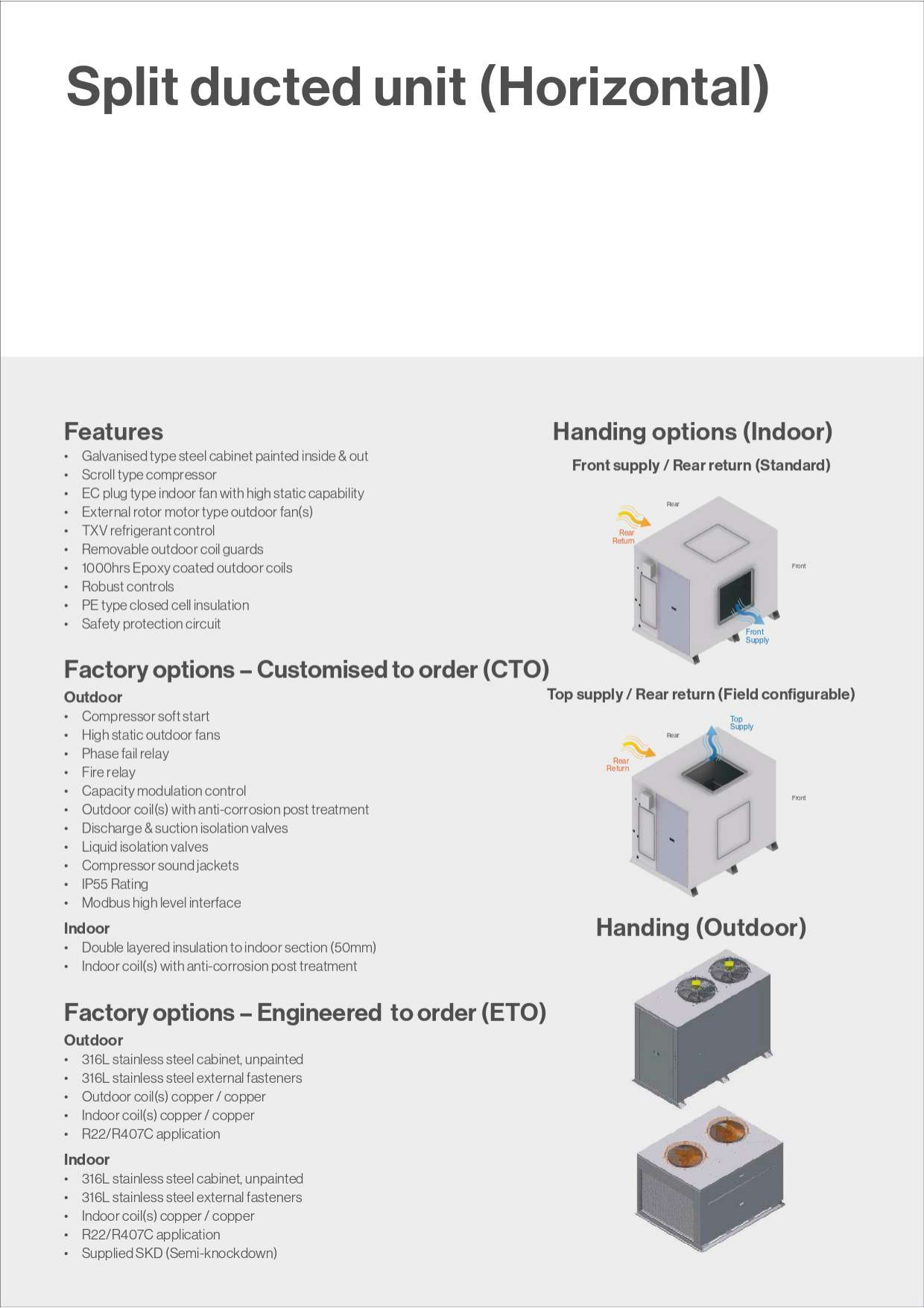

Horizontal split ducted unit feature page
