8 to 78 HP lineup
The VRV 6A lineup covers 8 to 78 HP, with single outdoor units from 8 to 26 HP and larger systems built from multiple outdoor-unit combinations.
Product Library
Daikin VRV 6A
Daikin VRV 6A Series outdoor units are built for larger commercial VRV applications using R410A refrigerant, with single outdoor units from 8 to 26 HP and multi-outdoor combinations from 28 to 78 HP.
Key Features
R410A VRV platform
Daikin Singapore lists VRV 6A as an R410A commercial VRV platform, with the Singapore outdoor-unit range spanning RXQ8BYMG through RXQ60BYMG.
Published 6A capacity range
The VRV 6A model spread shown on the Coolflow page now extends from 76,400 to 747,000 Btu/h across single modules and larger combination systems.
Larger commercial combinations
The 28 to 78 HP models are combination systems assembled from single outdoor modules, making the range suitable for larger commercial projects that need higher capacity while retaining VRV zoning flexibility.
Shared VRV indoor-unit compatibility
The VRV 6A page uses the same available fan coil selection as the VRV 6X page for project reference and product browsing.
Project Archives with VRV 6A
Retail Jurong Point
View project detailsSpecifications
- Series
- Daikin VRV 6A Series
- Model series
- RXQ-BYMG
- Outdoor unit type
- VRV outdoor unit
- System capacity range
- 8 to 78 HP
- Refrigerant
- R410A
- Power supply
- 3-phase, 4-wire system, 380-415 V / 380 V, 50/60 Hz
- Model range
- RXQ8BYMG to RXQ78BMYM
- Published capacity range
- 76,400 to 747,000 Btu/h
- Reference source
- Daikin Singapore VRV 6A product page, catalogue, and Coolflow Daikin combination mapping
Daikin VRV 6A Outdoor Unit Model Range
Single Outdoor Units

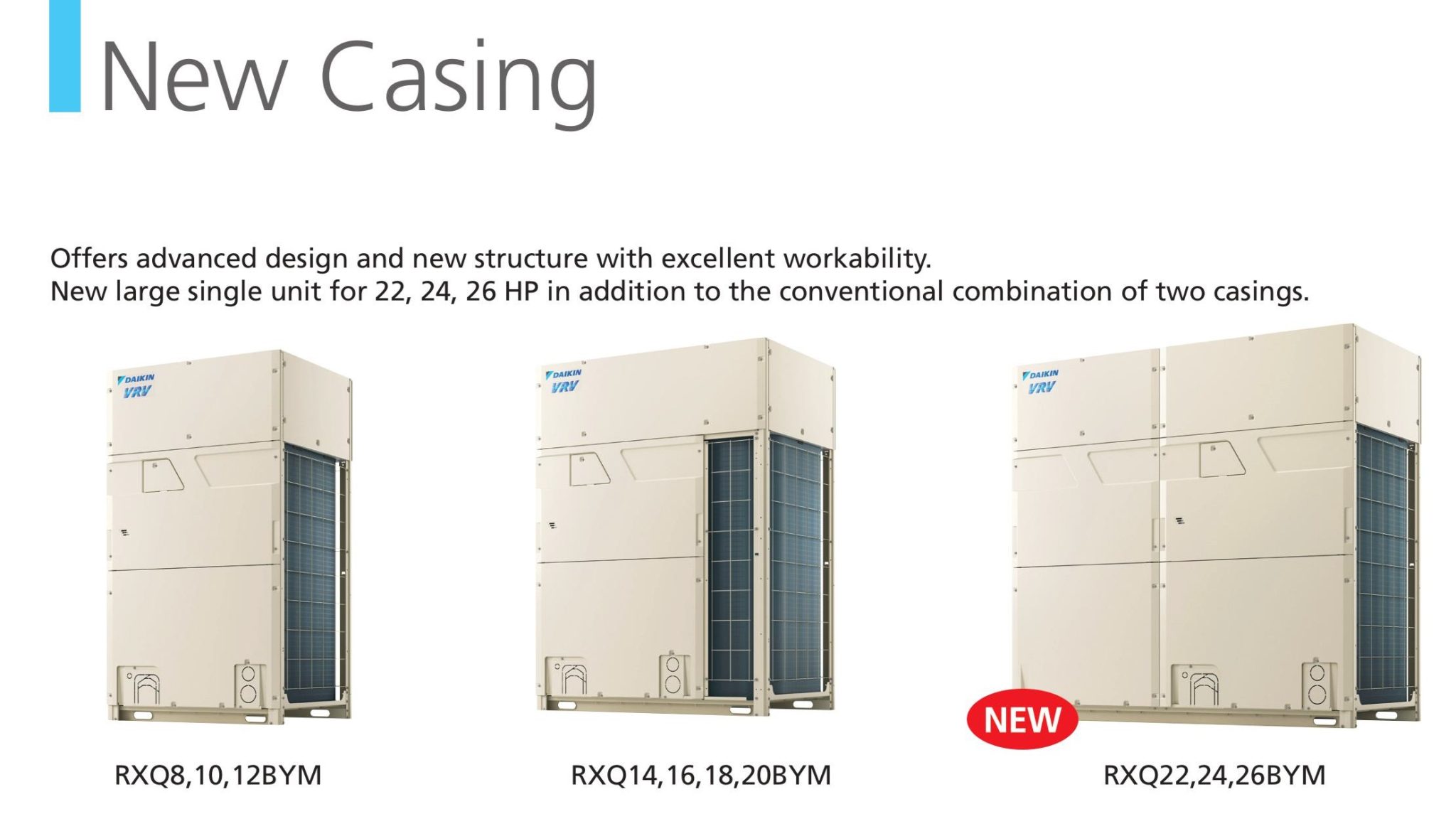

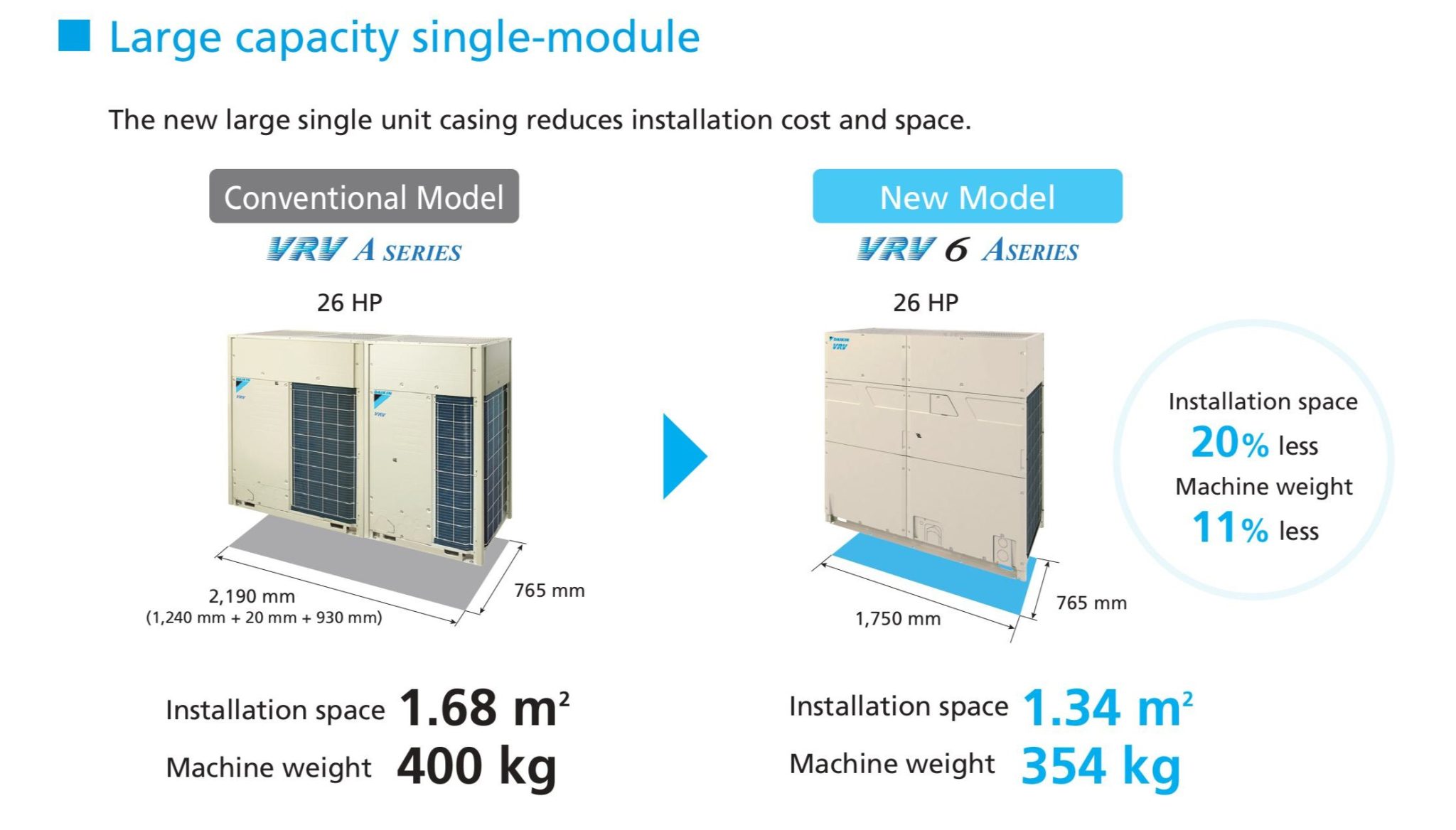

Single outdoor units are available from 8 to 26 HP. Larger 28 to 60 HP systems are formed using outdoor-unit combinations.
Swipe sideways to view the full table.
| HP | Model | Cooling Capacity | Size H × W × D |
|---|---|---|---|
| 8 HP | RXQ8BYMG | 22.4 kW / 76,400 Btu/h | 1,660 × 930 × 765 mm |
| 10 HP | RXQ10BYMG | 28.0 kW / 95,500 Btu/h | 1,660 × 930 × 765 mm |
| 12 HP | RXQ12BYMG | 33.5 kW / 114,000 Btu/h | 1,660 × 930 × 765 mm |
| 14 HP | RXQ14BYMG | 40.0 kW / 136,000 Btu/h | 1,660 × 930 × 765 mm |
| 16 HP | RXQ16BYMG | 45.0 kW / 154,000 Btu/h | 1,660 × 1,240 × 765 mm |
| 18 HP | RXQ18BYMG | 50.0 kW / 171,000 Btu/h | 1,660 × 1,240 × 765 mm |
| 20 HP | RXQ20BYMG | 56.0 kW / 191,000 Btu/h | 1,660 × 1,240 × 765 mm |
| 22 HP | RXQ22BYMG | 61.5 kW / 210,000 Btu/h | 1,660 × 1,750 × 765 mm |
| 24 HP | RXQ24BYMG | 67.0 kW / 229,000 Btu/h | 1,660 × 1,750 × 765 mm |
| 26 HP | RXQ26BYMG | 73.0 kW / 249,000 Btu/h | 1,660 × 1,750 × 765 mm |
Combination Systems
Swipe sideways to view the full table.
| HP | Model | Cooling Capacity | Outdoor Unit Combination |
|---|---|---|---|
| 28 HP | RXQ28BYMG | 78.5 kW / 268,000 Btu/h | RXQ12BYMG + RXQ16BYMG |
| 30 HP | RXQ30BYMG | 83.5 kW / 285,000 Btu/h | RXQ12BYMG + RXQ18BYMG |
| 32 HP | RXQ32BYMG | 89.5 kW / 305,000 Btu/h | RXQ12BYMG + RXQ20BYMG |
| 34 HP | RXQ34BYMG | 95.0 kW / 324,000 Btu/h | RXQ16BYMG + RXQ18BYMG |
| 36 HP | RXQ36BYMG | 100.0 kW / 341,000 Btu/h | RXQ18BYMG × 2 |
| 38 HP | RXQ38BYMG | 106.0 kW / 362,000 Btu/h | RXQ18BYMG + RXQ20BYMG |
| 40 HP | RXQ40BYMG | 112.0 kW / 382,000 Btu/h | RXQ20BYMG × 2 |
| 42 HP | RXQ42BYMG | 117.0 kW / 399,000 Btu/h | RXQ18BYMG + RXQ24BYMG |
| 44 HP | RXQ44BYMG | 123.0 kW / 420,000 Btu/h | RXQ18BYMG + RXQ26BYMG |
| 46 HP | RXQ46BYMG | 129.0 kW / 440,000 Btu/h | RXQ20BYMG + RXQ26BYMG |
| 48 HP | RXQ48BYMG | 134.0 kW / 457,000 Btu/h | RXQ22BYMG + RXQ26BYMG |
| 50 HP | RXQ50BYMG | 140.0 kW / 478,000 Btu/h | RXQ24BYMG + RXQ26BYMG |
| 52 HP | RXQ52BYMG | 146.0 kW / 498,000 Btu/h | RXQ26BYMG × 2 |
| 54 HP | RXQ54BYMG | 150.0 kW / 512,000 Btu/h | RXQ18BYMG × 3 |
| 56 HP | RXQ56BYMG | 156.0 kW / 532,000 Btu/h | RXQ18BYMG × 2 + RXQ20BYMG |
| 58 HP | RXQ58BYMG | 162.0 kW / 553,000 Btu/h | RXQ18BYMG + RXQ20BYMG × 2 |
| 60 HP | RXQ60BYMG | 168.0 kW / 573,000 Btu/h | RXQ20BYMG × 3 |
Fan Coil Types Available

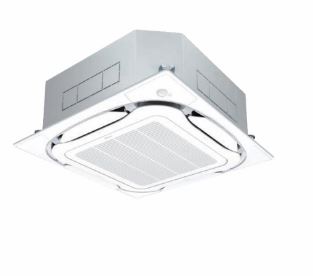

Cassette Round Flow Cassette with Sensing and Streamer
FXFTQ-A
Cassette Round Flow Cassette with Streamer
FXFRQ-A
Cassette Round Flow Cassette with Sensing
FXFSQ-A
Cassette Round Flow Cassette
FXFQ-A

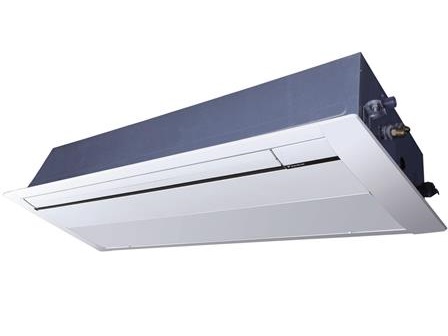

Cassette Single Flow Cassette
FXEQ-A

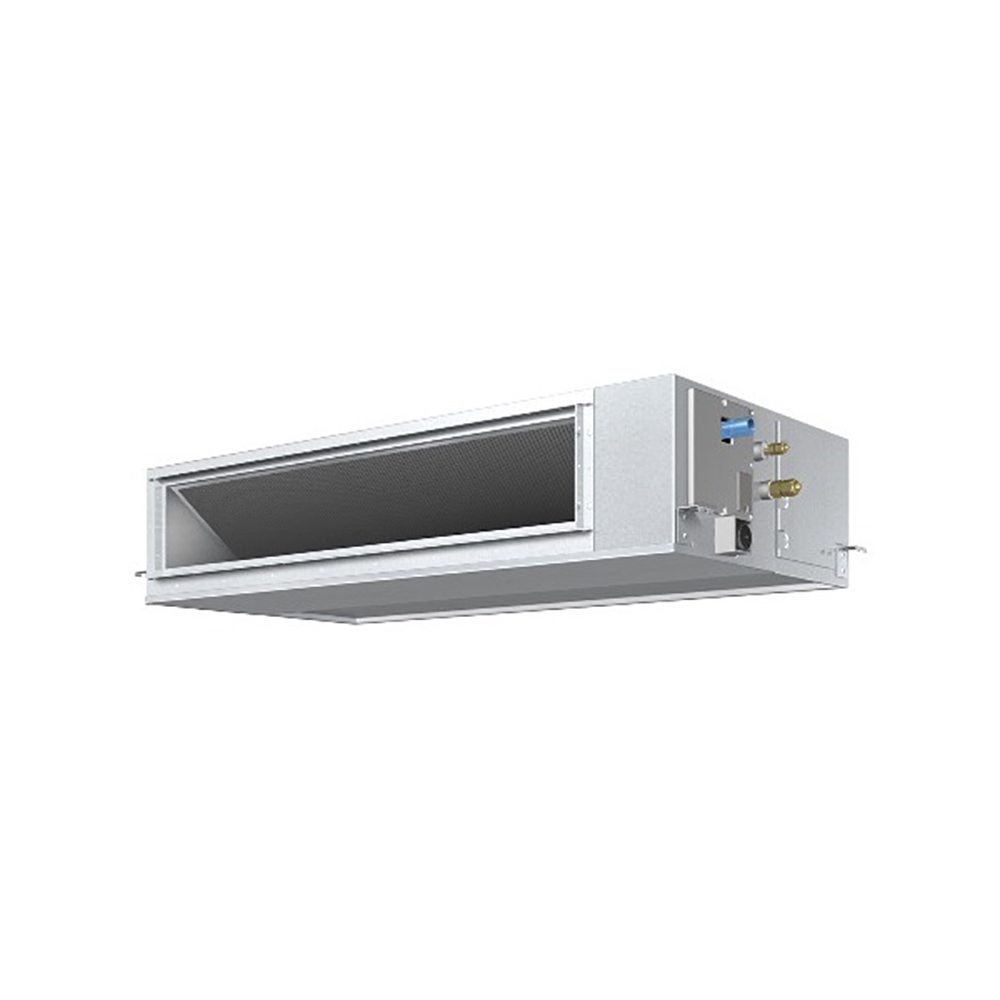

Ducted Middle Static Pressure Duct
FXSQ-PA
Ducted Middle-High Static Pressure Duct
FXMQ-PA
Ducted High Static Pressure Duct
FXMQ-P
Ducted High Static Pressure Duct
FXMQ-M

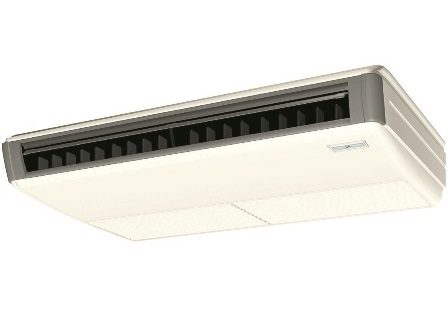

Ceiling Suspended 4-way Flow Ceiling Suspended
FXUQ-A
Ceiling Suspended Ceiling Suspended
FXHQ-MA / B

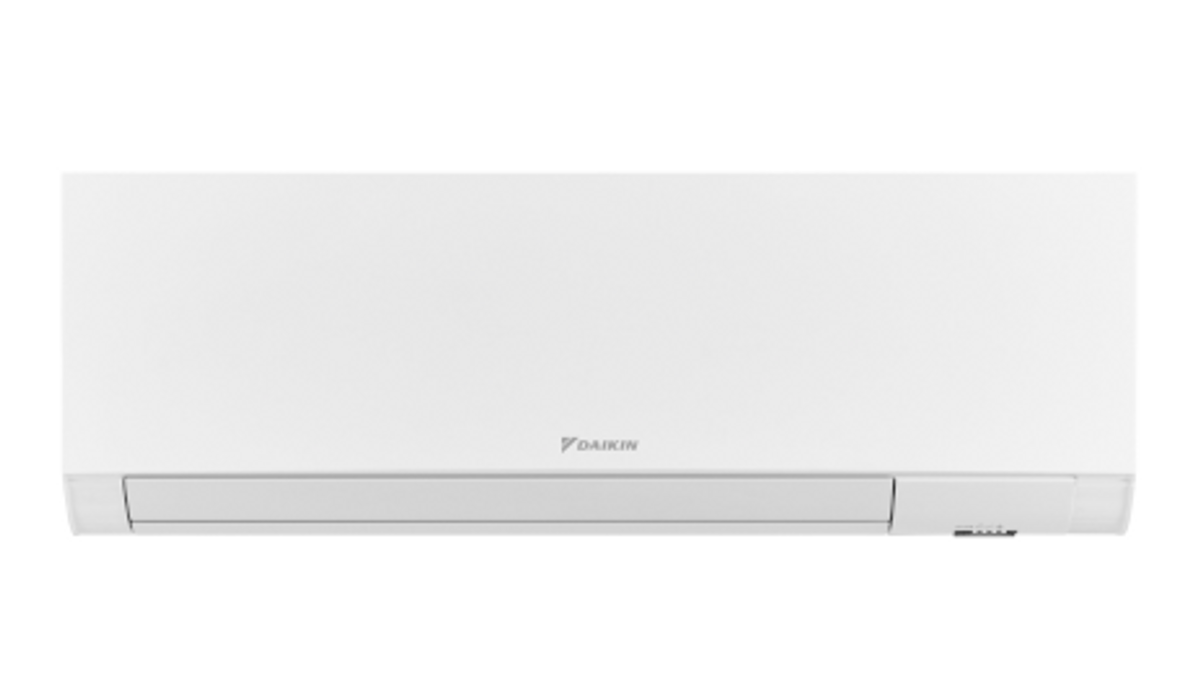

Wall Mounted Wall Mounted
FXAQ-B
Typical Applications
- Large commercial buildings requiring VRV / VRF zoning
- Office, retail, hospitality, and mixed-use ACMV projects with higher capacity requirements
- Projects where system combination range, piping flexibility, and long-term serviceability matter
