Air-Conditioning Copper Pipe

Shop NCS and Daikin DSP copper pipe for air-conditioning and refrigeration installations, with pancake coils and straight-length tube sizes for project pricing and order requests.

85 total variants 47 NCS 38 Daikin DSP 32 pancake coils 53 straight lengths

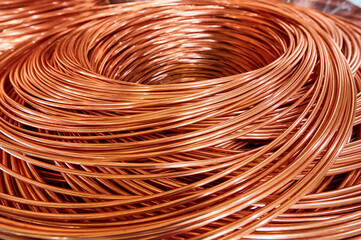

Copper coil for air-conditioning installations Copper pipe material reference
NCS logo Available

NCS Air-Conditioning Copper Pipe

Seamless copper tube for refrigeration and air-conditioning installations, available as annealed coils and hard-drawn straight lengths.

ASTM B280 C12200 Copper Electronically Tested Cleaned and Capped PSB Tested
Open NCS catalogue
Daikin DSP Copper
Availability to be confirmed

Daikin DSP Copper Pipe

Seamless copper pancake coils and straight-length tubes manufactured for air-conditioning and refrigeration applications.

ASTM B280 Copper Grade C12200 99.9% Copper Annealed Pancake Coil Hard-Drawn Straight Tube SWG 21 and SWG 22

Chemical properties

  • Standard: ASTM B280
  • Grade: C12200
  • Copper Cu: 99.9%
  • Phosphorus P: 0.015%–0.04%

Mechanical properties

  • H80 tensile strength: minimum 250 MPa
  • O60 tensile strength: minimum 205 MPa
  • O60 elongation: minimum 40%

Copper Selector

Filter by brand, product form, size and wall thickness

Use the brand selector and filters below to compare NCS and Daikin DSP copper pipe variants. Prices are shown before GST for faster scanning.

Size reference

1/2" · 12.70 mm · 5/8" · 15.88 mm · 3/4" · 19.05 mm · 1/4" · 6.35 mm · 3/8" · 9.52 mm ...

Filters

Add items here, then complete customer details on the checkout page.

Showing 32 products

Brand Size Wall Thickness SWG Length Product Code Unit Price Quantity Add to Cart
Daikin DSP Pancake Coil 1/2" 12.70 mm OD 0.71 mm (22 SWG) 22 SWG 10 m PCC-1/2-22(10M) Availability to be confirmed $39.32 before GST per coil
Daikin DSP Pancake Coil 5/8" 15.88 mm OD 0.71 mm (22 SWG) 22 SWG 10 m PCC-5/8-22(10M) Availability to be confirmed $48.51 before GST per coil
Daikin DSP Pancake Coil 3/4" 19.05 mm OD 0.71 mm (22 SWG) 22 SWG 10 m PCC-3/4-22(10M) Availability to be confirmed $58.80 before GST per coil
Daikin DSP Pancake Coil 1/4" 6.35 mm OD 0.71 mm (22 SWG) 22 SWG 12 m PCC-1/4-22(12M) Availability to be confirmed $29.40 before GST per coil
Daikin DSP Pancake Coil 3/8" 9.52 mm OD 0.71 mm (22 SWG) 22 SWG 12 m PCC-3/8-22(12M) Availability to be confirmed $46.31 before GST per coil
Daikin DSP Pancake Coil 1/2" 12.70 mm OD 0.71 mm (22 SWG) 22 SWG 12 m PCC-1/2-22(12M) Availability to be confirmed $58.80 before GST per coil
Daikin DSP Pancake Coil 5/8" 15.88 mm OD 0.71 mm (22 SWG) 22 SWG 12 m PCC-5/8-22(12M) Availability to be confirmed $72.77 before GST per coil
Daikin DSP Pancake Coil 3/4" 19.05 mm OD 0.71 mm (22 SWG) 22 SWG 12 m PCC-3/4-22(12M) Availability to be confirmed $88.20 before GST per coil
Daikin DSP Pancake Coil 1/4" 6.35 mm OD 0.81 mm (21 SWG) 21 SWG 15 m PCC-1/4-21 Availability to be confirmed $42.63 before GST per coil
Daikin DSP Pancake Coil 3/8" 9.52 mm OD 0.81 mm (21 SWG) 21 SWG 15 m PCC-3/8-21 Availability to be confirmed $67.62 before GST per coil
Daikin DSP Pancake Coil 1/2" 12.70 mm OD 0.81 mm (21 SWG) 21 SWG 15 m PCC-1/2-21 Availability to be confirmed $84.53 before GST per coil
Daikin DSP Pancake Coil 5/8" 15.88 mm OD 0.81 mm (21 SWG) 21 SWG 15 m PCC-5/8-21 Availability to be confirmed $110.25 before GST per coil
Daikin DSP Pancake Coil 3/4" 19.05 mm OD 0.81 mm (21 SWG) 21 SWG 15 m PCC-3/4-21 Availability to be confirmed $135.24 before GST per coil
Daikin DSP Pancake Coil 1/4" 6.35 mm OD 0.71 mm (22 SWG) 22 SWG 15 m PCC-1/4-22 Availability to be confirmed $36.75 before GST per coil
Daikin DSP Pancake Coil 3/8" 9.52 mm OD 0.71 mm (22 SWG) 22 SWG 15 m PCC-3/8-22 Availability to be confirmed $58.07 before GST per coil
Daikin DSP Pancake Coil 1/2" 12.70 mm OD 0.71 mm (22 SWG) 22 SWG 15 m PCC-1/2-22 Availability to be confirmed $77.91 before GST per coil
Daikin DSP Pancake Coil 5/8" 15.88 mm OD 0.71 mm (22 SWG) 22 SWG 15 m PCC-5/8-22 Availability to be confirmed $96.29 before GST per coil
Daikin DSP Pancake Coil 3/4" 19.05 mm OD 0.71 mm (22 SWG) 22 SWG 15 m PCC-3/4-22 Availability to be confirmed $117.60 before GST per coil
Daikin DSP Straight Tube 1/4" 6.35 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-1/4-21 Availability to be confirmed $25.73 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 3/8" 9.52 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-3/8-21 Availability to be confirmed $47.04 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1/2" 12.70 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-1/2-21 Availability to be confirmed $50.72 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 5/8" 15.88 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-5/8-21 Availability to be confirmed $55.13 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 3/4" 19.05 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-3/4-21 Availability to be confirmed $59.54 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 7/8" 22.22 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-7/8-21 Availability to be confirmed $67.62 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1" 25.40 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-1-21 Availability to be confirmed $84.53 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1-1/8" 28.58 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-1 1/8-21 Availability to be confirmed $88.94 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1-3/8" 34.93 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-1 3/8-21 Availability to be confirmed $97.02 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1-5/8" 41.28 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m SCP-1 5/8-21 Availability to be confirmed $105.84 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1/4" 6.35 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-1/4-22 Availability to be confirmed $21.32 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 3/8" 9.52 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-3/8-22 Availability to be confirmed $33.81 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1/2" 12.70 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-1/2-22 Availability to be confirmed $37.49 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 5/8" 15.88 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-5/8-22 Availability to be confirmed $42.63 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 3/4" 19.05 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-3/4-22 Availability to be confirmed $47.78 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 7/8" 22.22 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-7/8-22 Availability to be confirmed $64.68 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1" 25.40 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-1-22 Availability to be confirmed $72.03 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1-1/8" 28.58 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-1 1/8-22 Availability to be confirmed $84.53 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1-3/8" 34.93 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-1 3/8-22 Availability to be confirmed $88.20 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
Daikin DSP Straight Tube 1-5/8" 41.28 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m SCP-1 5/8-22 Availability to be confirmed $95.55 before GST per length
This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.
NCS Pancake Coil 1/4" 6.35 mm OD 0.81 mm (21 SWG) 21 SWG 15 m NCSCC0221 Available $43.79 before GST per coil
NCS Pancake Coil 3/8" 9.52 mm OD 0.81 mm (21 SWG) 21 SWG 15 m NCSCC0321 Available $69.09 before GST per coil
NCS Pancake Coil 1/2" 12.70 mm OD 0.81 mm (21 SWG) 21 SWG 15 m NCSCC0421 Available $95.87 before GST per coil
NCS Pancake Coil 5/8" 15.88 mm OD 0.81 mm (21 SWG) 21 SWG 15 m NCSCC0521 Available $121.70 before GST per coil
NCS Pancake Coil 3/4" 19.05 mm OD 0.81 mm (21 SWG) 21 SWG 15 m NCSCC0621 Available $155.30 before GST per coil
NCS Pancake Coil 7/8" 22.23 mm OD 0.81 mm (21 SWG) 21 SWG 15 m NCSCC0721 Available $182.28 before GST per coil
NCS Pancake Coil 1/4" 6.35 mm OD 0.71 mm (22 SWG) 22 SWG 15 m NCSCC0222 Available $38.54 before GST per coil
NCS Pancake Coil 3/8" 9.52 mm OD 0.71 mm (22 SWG) 22 SWG 15 m NCSCC0322 Available $60.27 before GST per coil
NCS Pancake Coil 1/2" 12.70 mm OD 0.71 mm (22 SWG) 22 SWG 15 m NCSCC0422 Available $83.48 before GST per coil
NCS Pancake Coil 5/8" 15.88 mm OD 0.71 mm (22 SWG) 22 SWG 15 m NCSCC0522 Available $105.32 before GST per coil
NCS Pancake Coil 3/4" 19.05 mm OD 0.71 mm (22 SWG) 22 SWG 15 m NCSCC0622 Available $133.35 before GST per coil
NCS Pancake Coil 1/4" 6.35 mm OD 0.61 mm (23 SWG) 23 SWG 15 m NCSCC0223 Available $33.60 before GST per coil
NCS Pancake Coil 3/8" 9.52 mm OD 0.61 mm (23 SWG) 23 SWG 15 m NCSCC0323 Available $52.19 before GST per coil
NCS Pancake Coil 1/2" 12.70 mm OD 0.61 mm (23 SWG) 23 SWG 15 m NCSCC0423 Available $72.24 before GST per coil
NCS Straight Tube 1/2" 12.70 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP0482129 Available $19.64 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 5/8" 15.88 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP0582129 Available $24.89 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 3/4" 19.05 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP0682129 Available $29.40 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 7/8" 22.23 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP0782129 Available $35.39 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1" 25.40 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP1002129 Available $40.74 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1-1/8" 28.58 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP1182129 Available $45.99 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1-3/8" 34.93 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP1382129 Available $56.49 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1-5/8" 41.28 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP1582129 Available $66.99 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 2-1/8" 53.98 mm OD 0.81 mm (21 SWG) 21 SWG 2.9 m NCSCP2182129 Available $87.99 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1/2" 12.70 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP0482229 Available $17.43 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 5/8" 15.88 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP0582229 Available $22.10 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 3/4" 19.05 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP0682229 Available $26.57 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 7/8" 22.23 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP0782229 Available $31.24 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1" 25.40 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP1002229 Available $35.96 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1-1/8" 28.58 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP1182229 Available $40.48 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1-3/8" 34.93 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP1382229 Available $49.67 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1-5/8" 41.28 mm OD 0.71 mm (22 SWG) 22 SWG 2.9 m NCSCP1582229 Available $58.80 before GST per length
Long-item delivery may require a suitable vehicle.
NCS Straight Tube 1/2" 12.70 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP0482158 Available $38.85 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 5/8" 15.88 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP0582158 Available $49.35 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 3/4" 19.05 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP0682158 Available $59.85 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 7/8" 22.23 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP0782158 Available $70.35 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1" 25.40 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP1002158 Available $80.85 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1-1/8" 28.58 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP1182158 Available $91.35 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1-3/8" 34.93 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP1382158 Available $112.35 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1-5/8" 41.28 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP1582158 Available $133.35 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 2-1/8" 53.98 mm OD 0.81 mm (21 SWG) 21 SWG 5.8 m NCSCP2182158 Available $175.35 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1/2" 12.70 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m NCSCP0482258 Available $34.44 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 5/8" 15.88 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m NCSCP0582258 Available $43.79 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 3/4" 19.05 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m NCSCP0682258 Available $52.71 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 7/8" 22.23 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m NCSCP0782258 Available $62.06 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1-1/8" 28.58 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m NCSCP1182258 Available $80.33 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1-3/8" 34.93 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m NCSCP1382258 Available $98.70 before GST per length
Special transport required. Delivery charge will be confirmed separately.
NCS Straight Tube 1-5/8" 41.28 mm OD 0.71 mm (22 SWG) 22 SWG 5.8 m NCSCP1582258 Available $116.97 before GST per length
Special transport required. Delivery charge will be confirmed separately.
Daikin DSP 1/2" Pancake Coil 12.70 mm outside diameter
$39.32 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
10 m per coil
Product code
PCC-1/2-22(10M)
Daikin DSP 5/8" Pancake Coil 15.88 mm outside diameter
$48.51 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
10 m per coil
Product code
PCC-5/8-22(10M)
Daikin DSP 3/4" Pancake Coil 19.05 mm outside diameter
$58.80 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
10 m per coil
Product code
PCC-3/4-22(10M)
Daikin DSP 1/4" Pancake Coil 6.35 mm outside diameter
$29.40 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
12 m per coil
Product code
PCC-1/4-22(12M)
Daikin DSP 3/8" Pancake Coil 9.52 mm outside diameter
$46.31 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
12 m per coil
Product code
PCC-3/8-22(12M)
Daikin DSP 1/2" Pancake Coil 12.70 mm outside diameter
$58.80 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
12 m per coil
Product code
PCC-1/2-22(12M)
Daikin DSP 5/8" Pancake Coil 15.88 mm outside diameter
$72.77 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
12 m per coil
Product code
PCC-5/8-22(12M)
Daikin DSP 3/4" Pancake Coil 19.05 mm outside diameter
$88.20 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
12 m per coil
Product code
PCC-3/4-22(12M)
Daikin DSP 1/4" Pancake Coil 6.35 mm outside diameter
$42.63 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
PCC-1/4-21
Daikin DSP 3/8" Pancake Coil 9.52 mm outside diameter
$67.62 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
PCC-3/8-21
Daikin DSP 1/2" Pancake Coil 12.70 mm outside diameter
$84.53 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
PCC-1/2-21
Daikin DSP 5/8" Pancake Coil 15.88 mm outside diameter
$110.25 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
PCC-5/8-21
Daikin DSP 3/4" Pancake Coil 19.05 mm outside diameter
$135.24 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
PCC-3/4-21
Daikin DSP 1/4" Pancake Coil 6.35 mm outside diameter
$36.75 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
PCC-1/4-22
Daikin DSP 3/8" Pancake Coil 9.52 mm outside diameter
$58.07 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
PCC-3/8-22
Daikin DSP 1/2" Pancake Coil 12.70 mm outside diameter
$77.91 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
PCC-1/2-22
Daikin DSP 5/8" Pancake Coil 15.88 mm outside diameter
$96.29 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
PCC-5/8-22
Daikin DSP 3/4" Pancake Coil 19.05 mm outside diameter
$117.60 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
PCC-3/4-22
Daikin DSP 1/4" Straight Tube 6.35 mm outside diameter
$25.73 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-1/4-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 3/8" Straight Tube 9.52 mm outside diameter
$47.04 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-3/8-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1/2" Straight Tube 12.70 mm outside diameter
$50.72 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-1/2-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 5/8" Straight Tube 15.88 mm outside diameter
$55.13 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-5/8-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 3/4" Straight Tube 19.05 mm outside diameter
$59.54 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-3/4-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 7/8" Straight Tube 22.22 mm outside diameter
$67.62 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-7/8-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1" Straight Tube 25.40 mm outside diameter
$84.53 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-1-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1-1/8" Straight Tube 28.58 mm outside diameter
$88.94 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-1 1/8-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1-3/8" Straight Tube 34.93 mm outside diameter
$97.02 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-1 3/8-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1-5/8" Straight Tube 41.28 mm outside diameter
$105.84 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
SCP-1 5/8-21

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1/4" Straight Tube 6.35 mm outside diameter
$21.32 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-1/4-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 3/8" Straight Tube 9.52 mm outside diameter
$33.81 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-3/8-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1/2" Straight Tube 12.70 mm outside diameter
$37.49 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-1/2-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 5/8" Straight Tube 15.88 mm outside diameter
$42.63 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-5/8-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 3/4" Straight Tube 19.05 mm outside diameter
$47.78 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-3/4-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 7/8" Straight Tube 22.22 mm outside diameter
$64.68 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-7/8-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1" Straight Tube 25.40 mm outside diameter
$72.03 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-1-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1-1/8" Straight Tube 28.58 mm outside diameter
$84.53 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-1 1/8-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1-3/8" Straight Tube 34.93 mm outside diameter
$88.20 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-1 3/8-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

Daikin DSP 1-5/8" Straight Tube 41.28 mm outside diameter
$95.55 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
SCP-1 5/8-22

This item is supplied in a 5.8 m straight length. Special transport is required and delivery charges will be confirmed separately.

NCS 1/4" Pancake Coil 6.35 mm outside diameter
$43.79 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
NCSCC0221
NCS 3/8" Pancake Coil 9.52 mm outside diameter
$69.09 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
NCSCC0321
NCS 1/2" Pancake Coil 12.70 mm outside diameter
$95.87 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
NCSCC0421
NCS 5/8" Pancake Coil 15.88 mm outside diameter
$121.70 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
NCSCC0521
NCS 3/4" Pancake Coil 19.05 mm outside diameter
$155.30 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
NCSCC0621
NCS 7/8" Pancake Coil 22.23 mm outside diameter
$182.28 before GST per coil
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
15 m per coil
Product code
NCSCC0721
NCS 1/4" Pancake Coil 6.35 mm outside diameter
$38.54 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
NCSCC0222
NCS 3/8" Pancake Coil 9.52 mm outside diameter
$60.27 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
NCSCC0322
NCS 1/2" Pancake Coil 12.70 mm outside diameter
$83.48 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
NCSCC0422
NCS 5/8" Pancake Coil 15.88 mm outside diameter
$105.32 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
NCSCC0522
NCS 3/4" Pancake Coil 19.05 mm outside diameter
$133.35 before GST per coil
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
15 m per coil
Product code
NCSCC0622
NCS 1/4" Pancake Coil 6.35 mm outside diameter
$33.60 before GST per coil
Wall thickness
0.61 mm (23 SWG)
SWG
23 SWG
Length
15 m per coil
Product code
NCSCC0223
NCS 3/8" Pancake Coil 9.52 mm outside diameter
$52.19 before GST per coil
Wall thickness
0.61 mm (23 SWG)
SWG
23 SWG
Length
15 m per coil
Product code
NCSCC0323
NCS 1/2" Pancake Coil 12.70 mm outside diameter
$72.24 before GST per coil
Wall thickness
0.61 mm (23 SWG)
SWG
23 SWG
Length
15 m per coil
Product code
NCSCC0423
NCS 1/2" Straight Tube 12.70 mm outside diameter
$19.64 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP0482129

Long-item delivery may require a suitable vehicle.

NCS 5/8" Straight Tube 15.88 mm outside diameter
$24.89 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP0582129

Long-item delivery may require a suitable vehicle.

NCS 3/4" Straight Tube 19.05 mm outside diameter
$29.40 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP0682129

Long-item delivery may require a suitable vehicle.

NCS 7/8" Straight Tube 22.23 mm outside diameter
$35.39 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP0782129

Long-item delivery may require a suitable vehicle.

NCS 1" Straight Tube 25.40 mm outside diameter
$40.74 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP1002129

Long-item delivery may require a suitable vehicle.

NCS 1-1/8" Straight Tube 28.58 mm outside diameter
$45.99 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP1182129

Long-item delivery may require a suitable vehicle.

NCS 1-3/8" Straight Tube 34.93 mm outside diameter
$56.49 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP1382129

Long-item delivery may require a suitable vehicle.

NCS 1-5/8" Straight Tube 41.28 mm outside diameter
$66.99 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP1582129

Long-item delivery may require a suitable vehicle.

NCS 2-1/8" Straight Tube 53.98 mm outside diameter
$87.99 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
2.9 m per length
Product code
NCSCP2182129

Long-item delivery may require a suitable vehicle.

NCS 1/2" Straight Tube 12.70 mm outside diameter
$17.43 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP0482229

Long-item delivery may require a suitable vehicle.

NCS 5/8" Straight Tube 15.88 mm outside diameter
$22.10 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP0582229

Long-item delivery may require a suitable vehicle.

NCS 3/4" Straight Tube 19.05 mm outside diameter
$26.57 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP0682229

Long-item delivery may require a suitable vehicle.

NCS 7/8" Straight Tube 22.23 mm outside diameter
$31.24 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP0782229

Long-item delivery may require a suitable vehicle.

NCS 1" Straight Tube 25.40 mm outside diameter
$35.96 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP1002229

Long-item delivery may require a suitable vehicle.

NCS 1-1/8" Straight Tube 28.58 mm outside diameter
$40.48 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP1182229

Long-item delivery may require a suitable vehicle.

NCS 1-3/8" Straight Tube 34.93 mm outside diameter
$49.67 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP1382229

Long-item delivery may require a suitable vehicle.

NCS 1-5/8" Straight Tube 41.28 mm outside diameter
$58.80 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
2.9 m per length
Product code
NCSCP1582229

Long-item delivery may require a suitable vehicle.

NCS 1/2" Straight Tube 12.70 mm outside diameter
$38.85 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP0482158

Special transport required. Delivery charge will be confirmed separately.

NCS 5/8" Straight Tube 15.88 mm outside diameter
$49.35 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP0582158

Special transport required. Delivery charge will be confirmed separately.

NCS 3/4" Straight Tube 19.05 mm outside diameter
$59.85 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP0682158

Special transport required. Delivery charge will be confirmed separately.

NCS 7/8" Straight Tube 22.23 mm outside diameter
$70.35 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP0782158

Special transport required. Delivery charge will be confirmed separately.

NCS 1" Straight Tube 25.40 mm outside diameter
$80.85 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP1002158

Special transport required. Delivery charge will be confirmed separately.

NCS 1-1/8" Straight Tube 28.58 mm outside diameter
$91.35 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP1182158

Special transport required. Delivery charge will be confirmed separately.

NCS 1-3/8" Straight Tube 34.93 mm outside diameter
$112.35 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP1382158

Special transport required. Delivery charge will be confirmed separately.

NCS 1-5/8" Straight Tube 41.28 mm outside diameter
$133.35 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP1582158

Special transport required. Delivery charge will be confirmed separately.

NCS 2-1/8" Straight Tube 53.98 mm outside diameter
$175.35 before GST per length
Wall thickness
0.81 mm (21 SWG)
SWG
21 SWG
Length
5.8 m per length
Product code
NCSCP2182158

Special transport required. Delivery charge will be confirmed separately.

NCS 1/2" Straight Tube 12.70 mm outside diameter
$34.44 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
NCSCP0482258

Special transport required. Delivery charge will be confirmed separately.

NCS 5/8" Straight Tube 15.88 mm outside diameter
$43.79 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
NCSCP0582258

Special transport required. Delivery charge will be confirmed separately.

NCS 3/4" Straight Tube 19.05 mm outside diameter
$52.71 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
NCSCP0682258

Special transport required. Delivery charge will be confirmed separately.

NCS 7/8" Straight Tube 22.23 mm outside diameter
$62.06 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
NCSCP0782258

Special transport required. Delivery charge will be confirmed separately.

NCS 1-1/8" Straight Tube 28.58 mm outside diameter
$80.33 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
NCSCP1182258

Special transport required. Delivery charge will be confirmed separately.

NCS 1-3/8" Straight Tube 34.93 mm outside diameter
$98.70 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
NCSCP1382258

Special transport required. Delivery charge will be confirmed separately.

NCS 1-5/8" Straight Tube 41.28 mm outside diameter
$116.97 before GST per length
Wall thickness
0.71 mm (22 SWG)
SWG
22 SWG
Length
5.8 m per length
Product code
NCSCP1582258

Special transport required. Delivery charge will be confirmed separately.
