Mitsubishi Heavy Industries KXZ2 VRF

Key Features

KXZ2 VRF-T heat pump platform

The KXZ2 heat-pump range is part of Mitsubishi Heavy Industries' VRF-T outdoor-unit lineup for commercial and industrial applications.

10 to 60 HP system range

The KXZE2 outdoor-unit family starts at 10 HP and scales to 60 HP combinations, giving designers a broad selection range for different building loads.

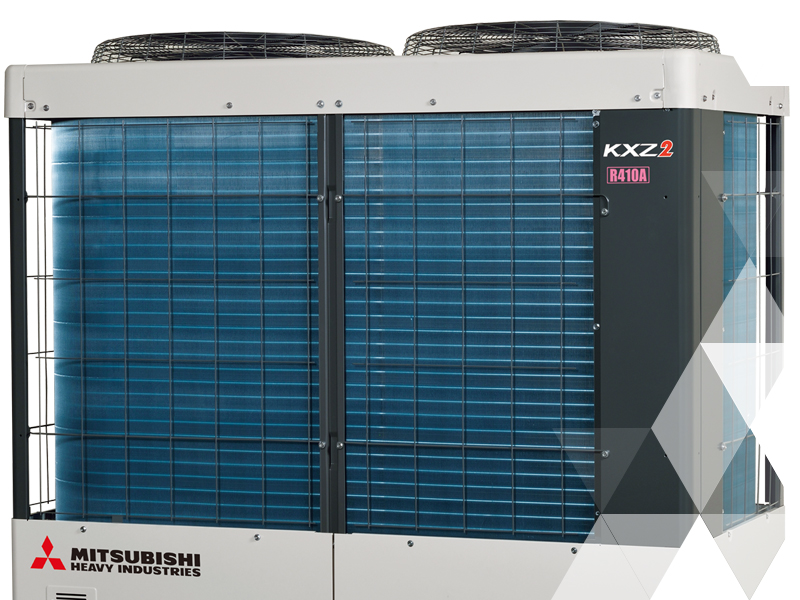

Published cooling and heating capacities

The official KXZ2 product data lists cooling capacity from 28.0 to 168.0 kW and heating capacity from 31.5 to 189.0 kW across the KXZE2 heat-pump lineup.

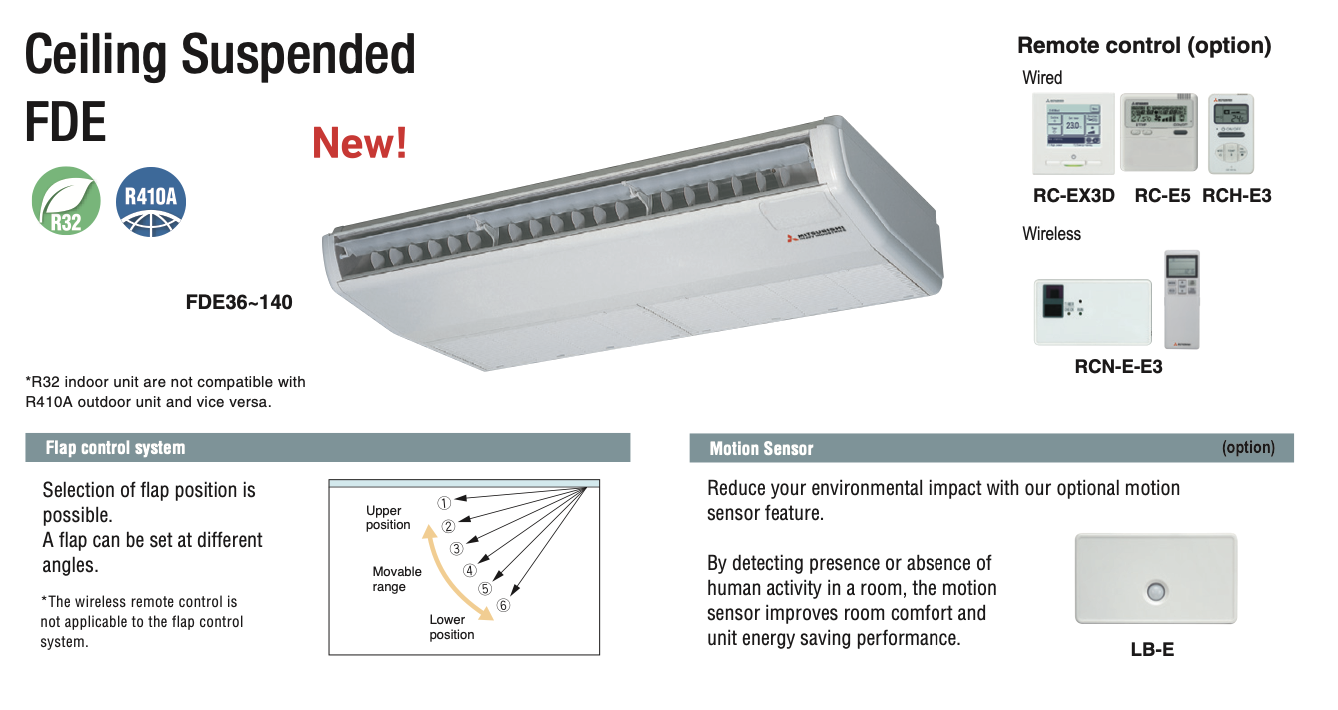

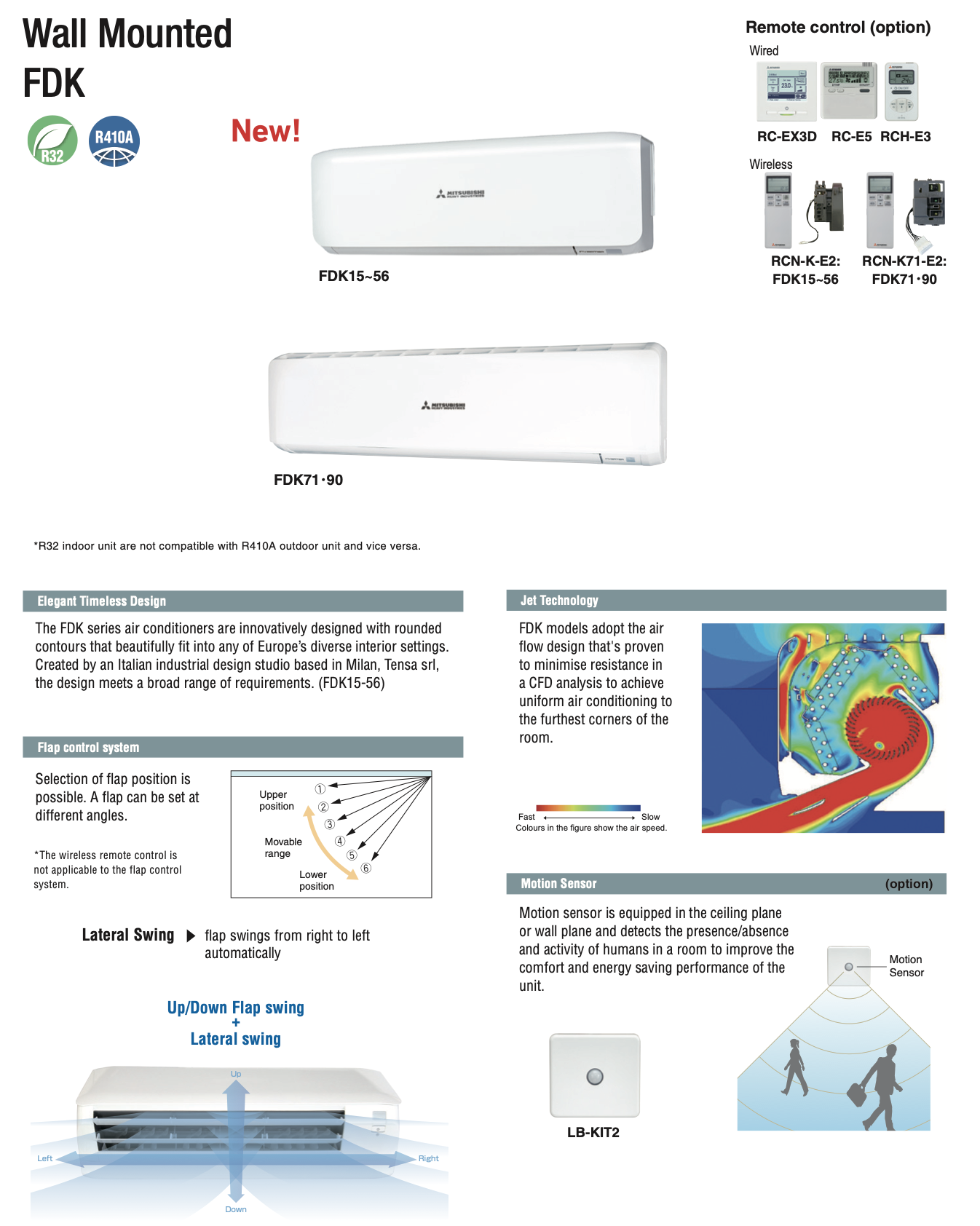

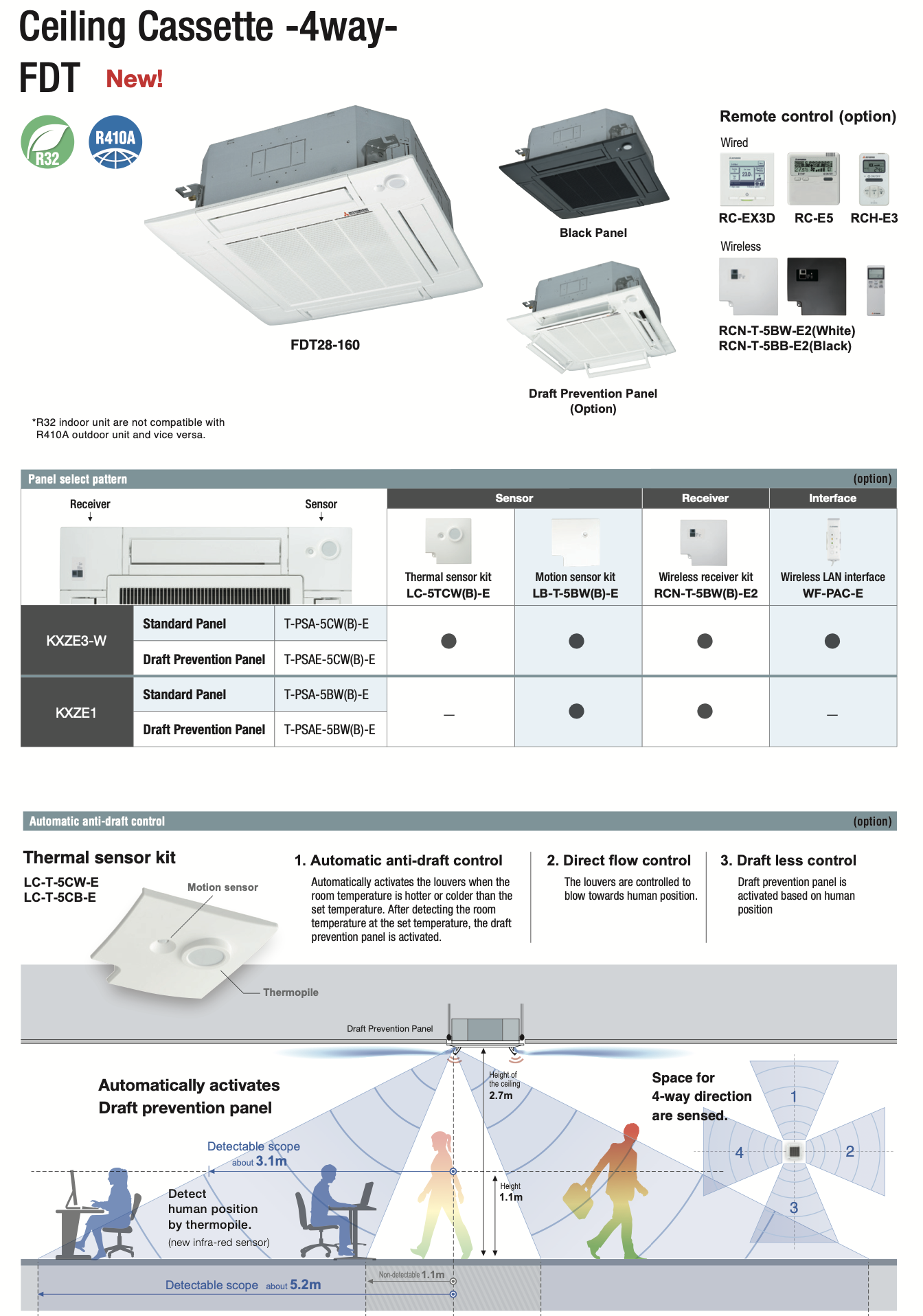

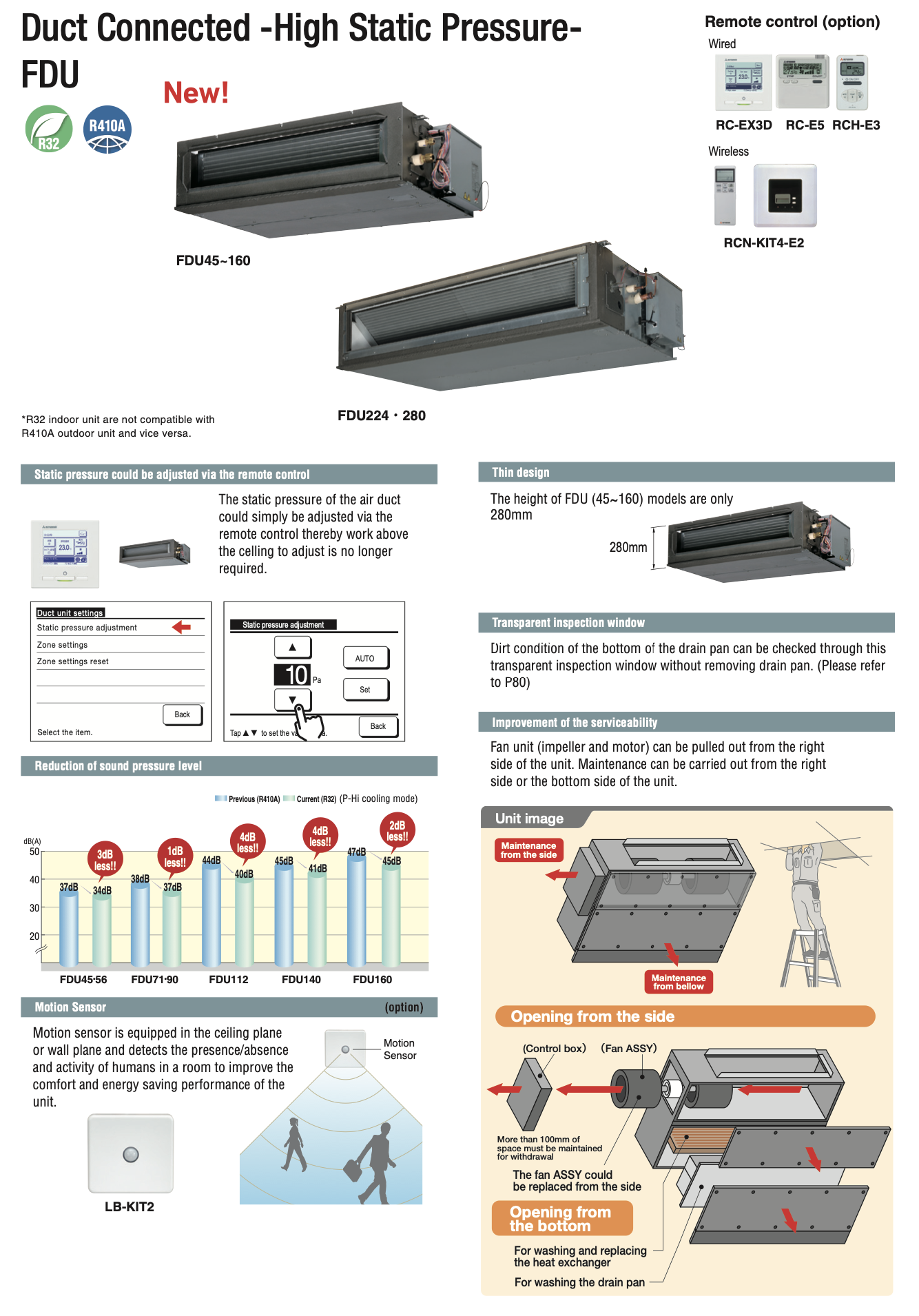

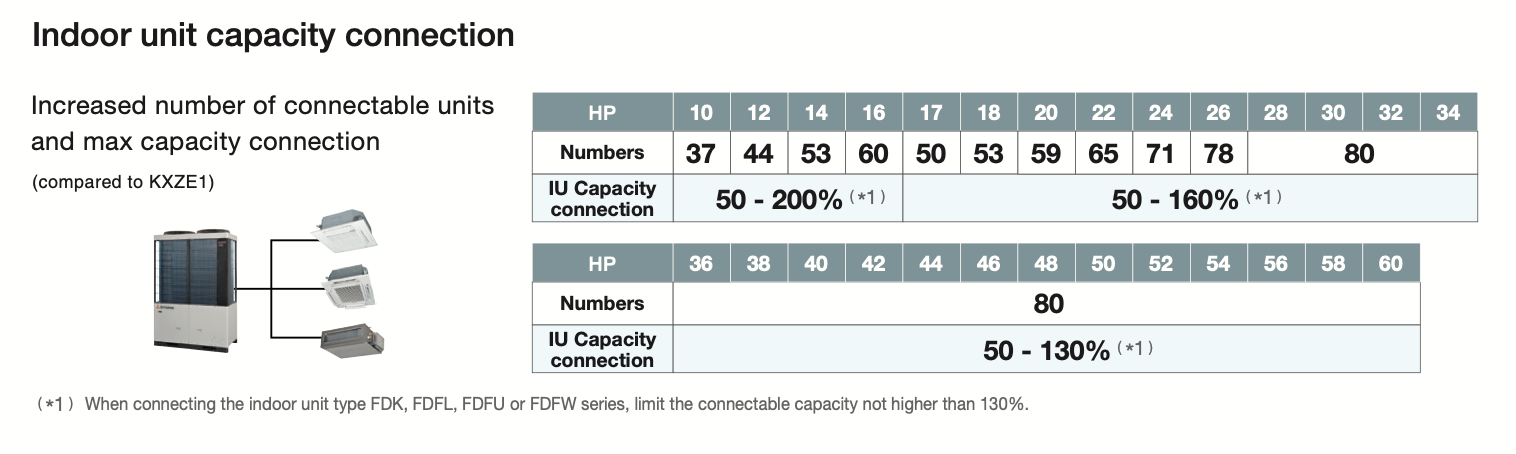

Broad indoor-unit connectivity

MHI Singapore describes the Super Multi VRF range as supporting many indoor unit types and indoor-unit connection flexibility for larger zoning layouts.

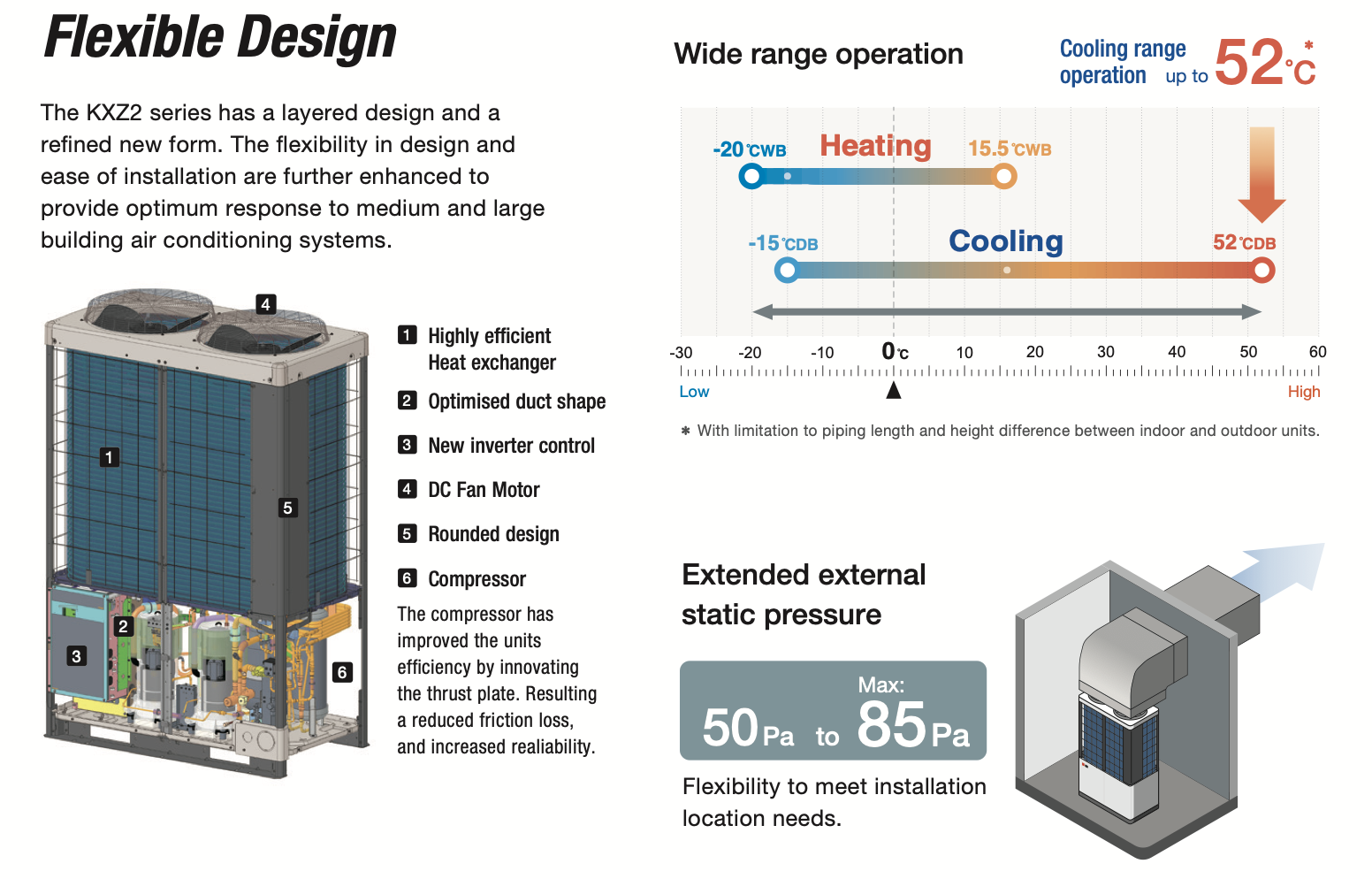

Flexible outdoor-unit combinations

The brochure line-up shows single outdoor units up to 20 HP, two-module combinations up to 40 HP, and three-module combinations up to 60 HP.

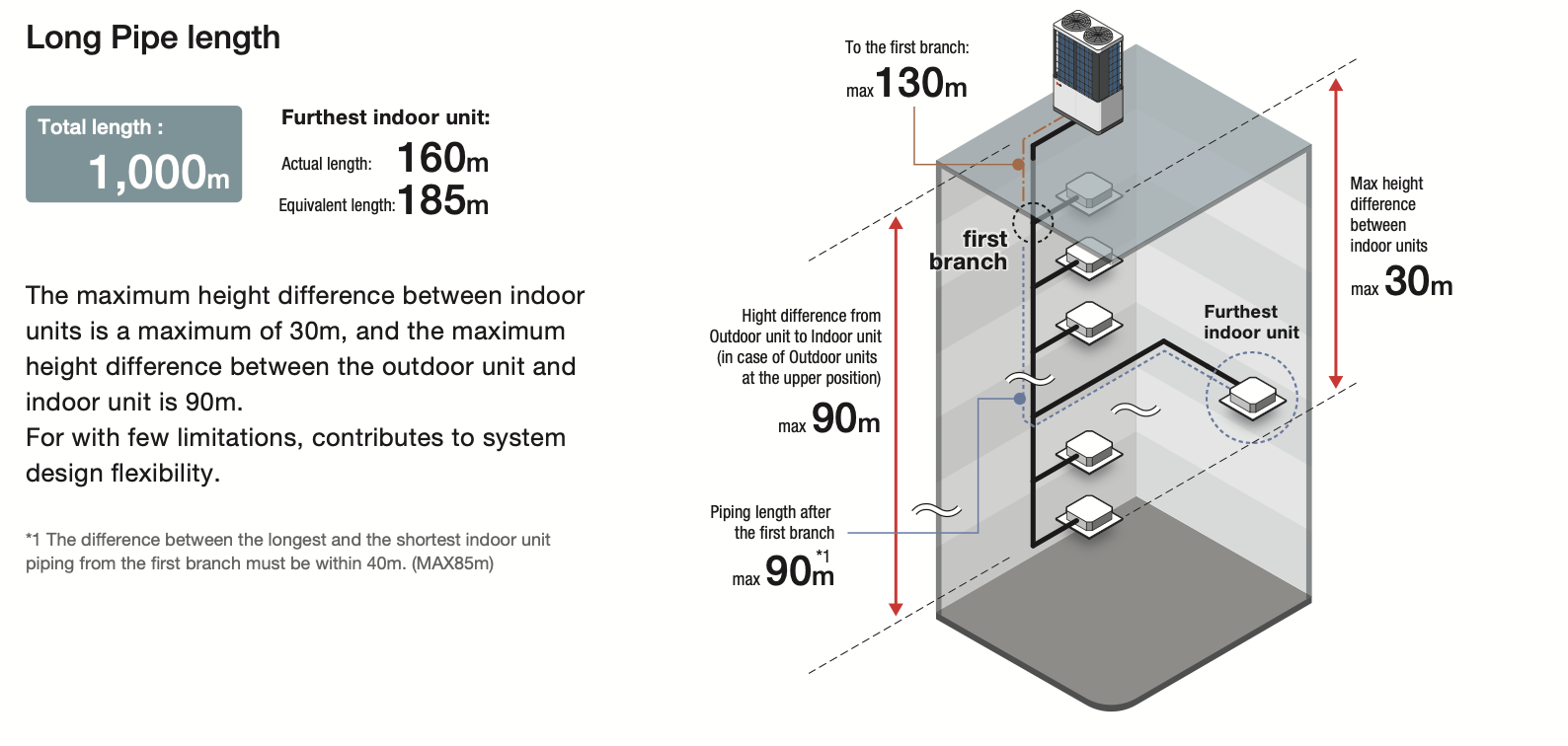

Long-piping design support

The Singapore VRF page highlights long refrigerant piping design, helping the KXZ2 range suit taller buildings and projects where plant locations are constrained.

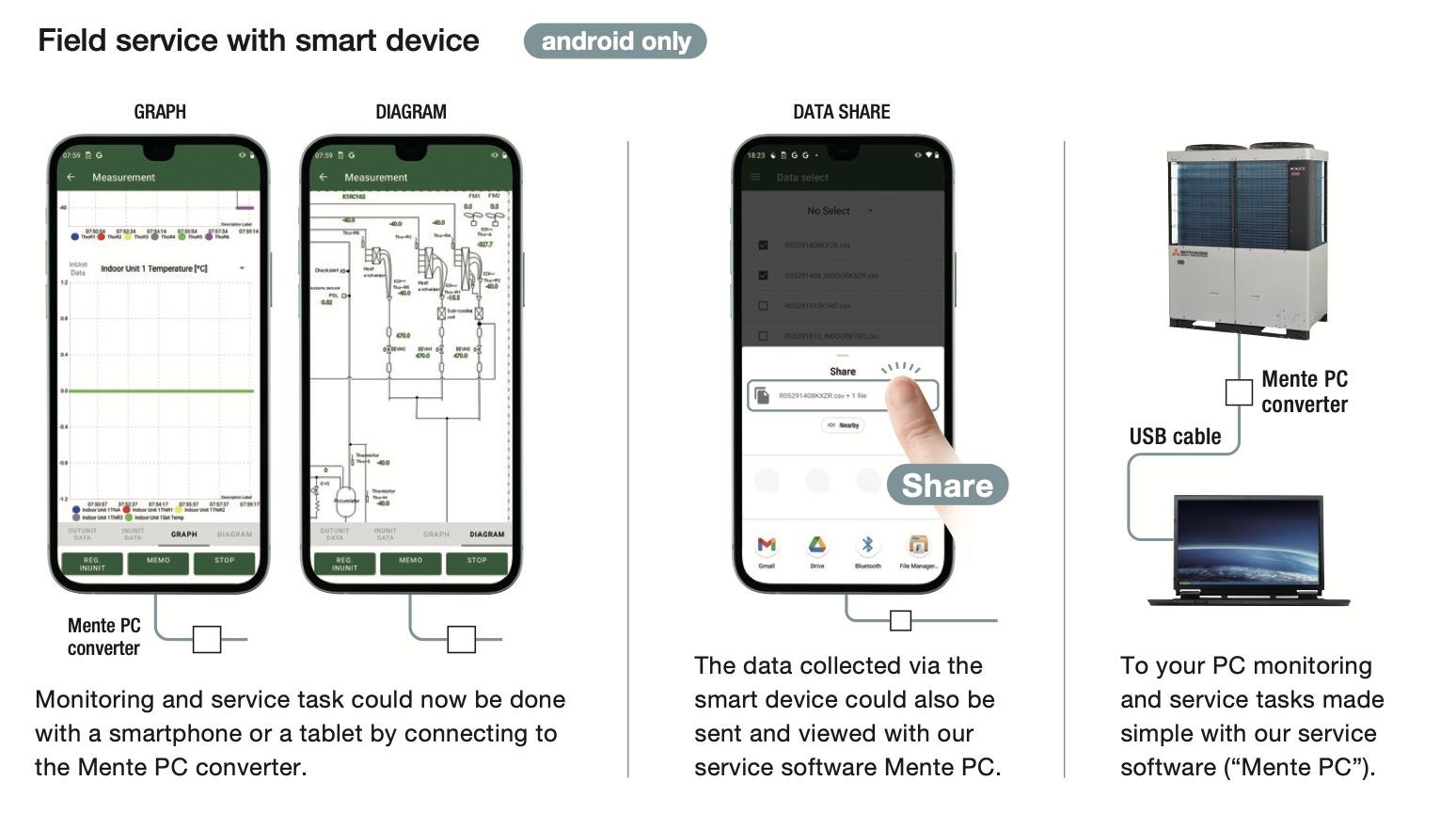

Service and commissioning support

The KXZ2 support material includes field-service smart-device references for setup, checking, and service workflows during commissioning and maintenance.

Project Archives with KXZ2 VRF

Commercial

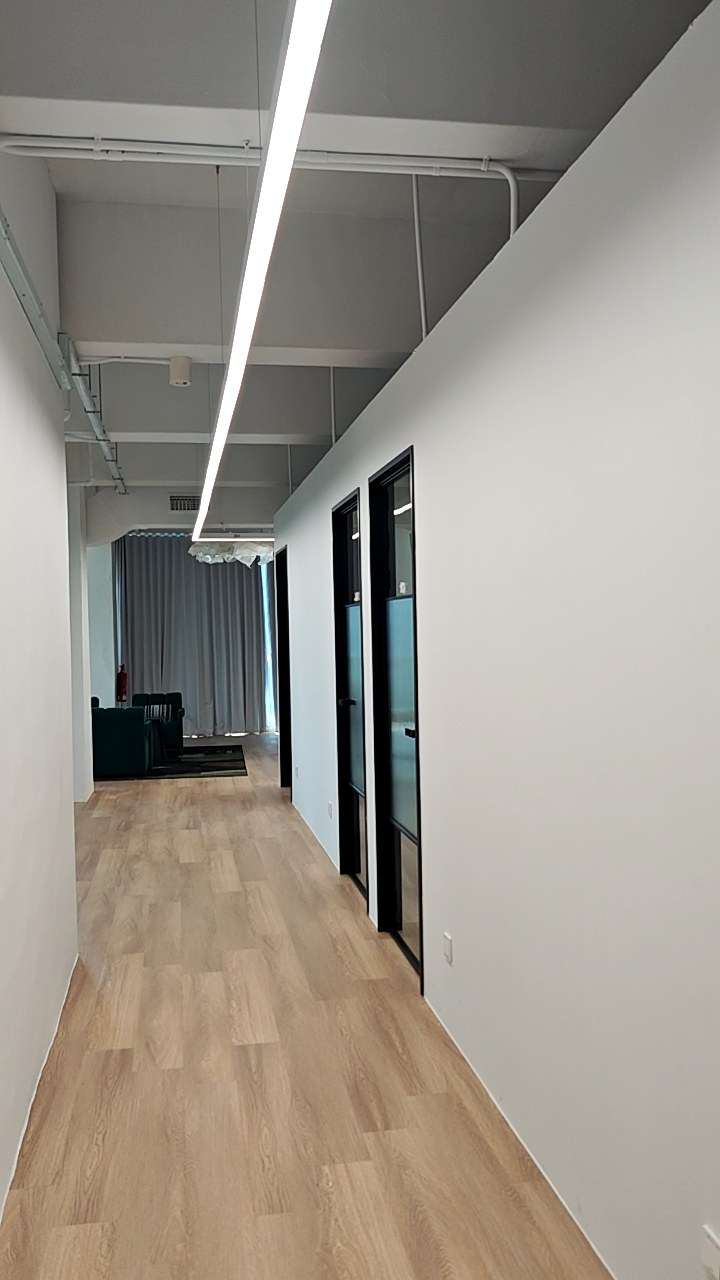

TBC AVENTRE

Commissioned Mitsubishi Heavy VRF system: 3x 40.0kW condensing units with 6 Ducted FCUs, including pressure/vacuum tests and controls...

View project details

F&B

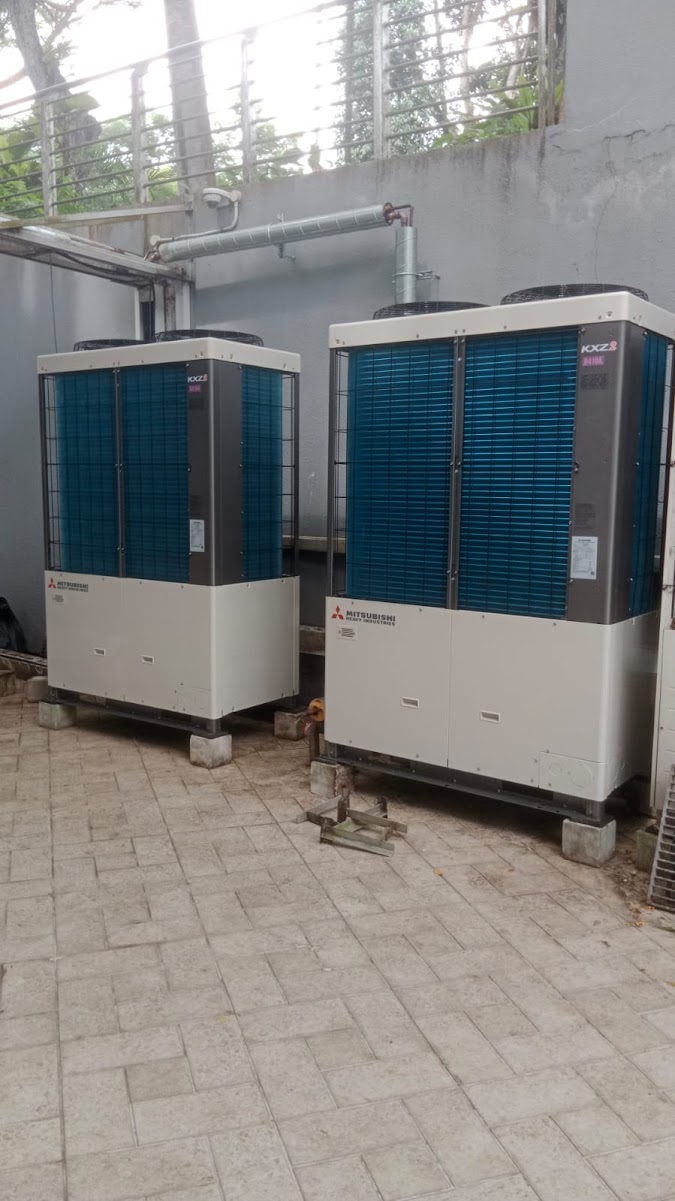

Treasure Paradise

View project details

F&B

Greenwood Fish Market

View project details

F&B

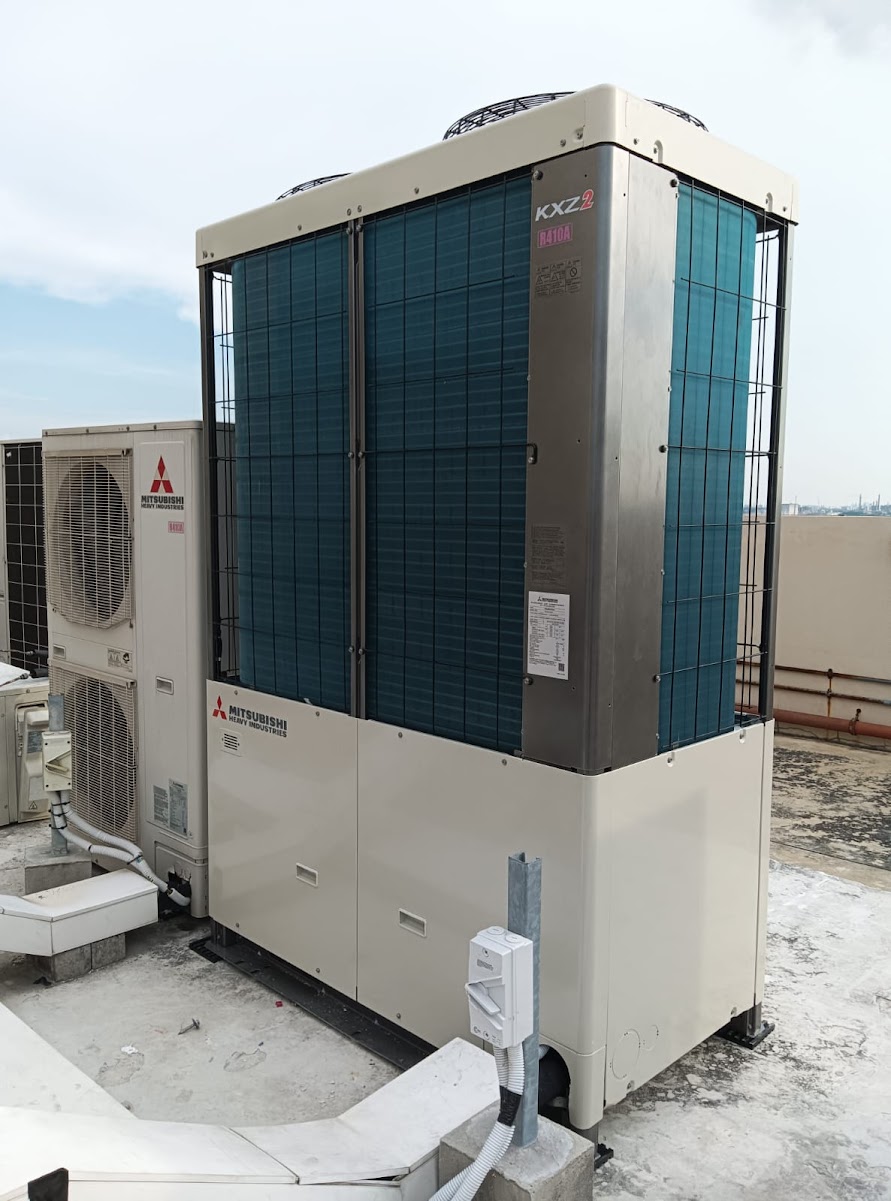

Bob The Baker Boy

View project details

Light Commercial

Dreiheit House

View project details

Commercial

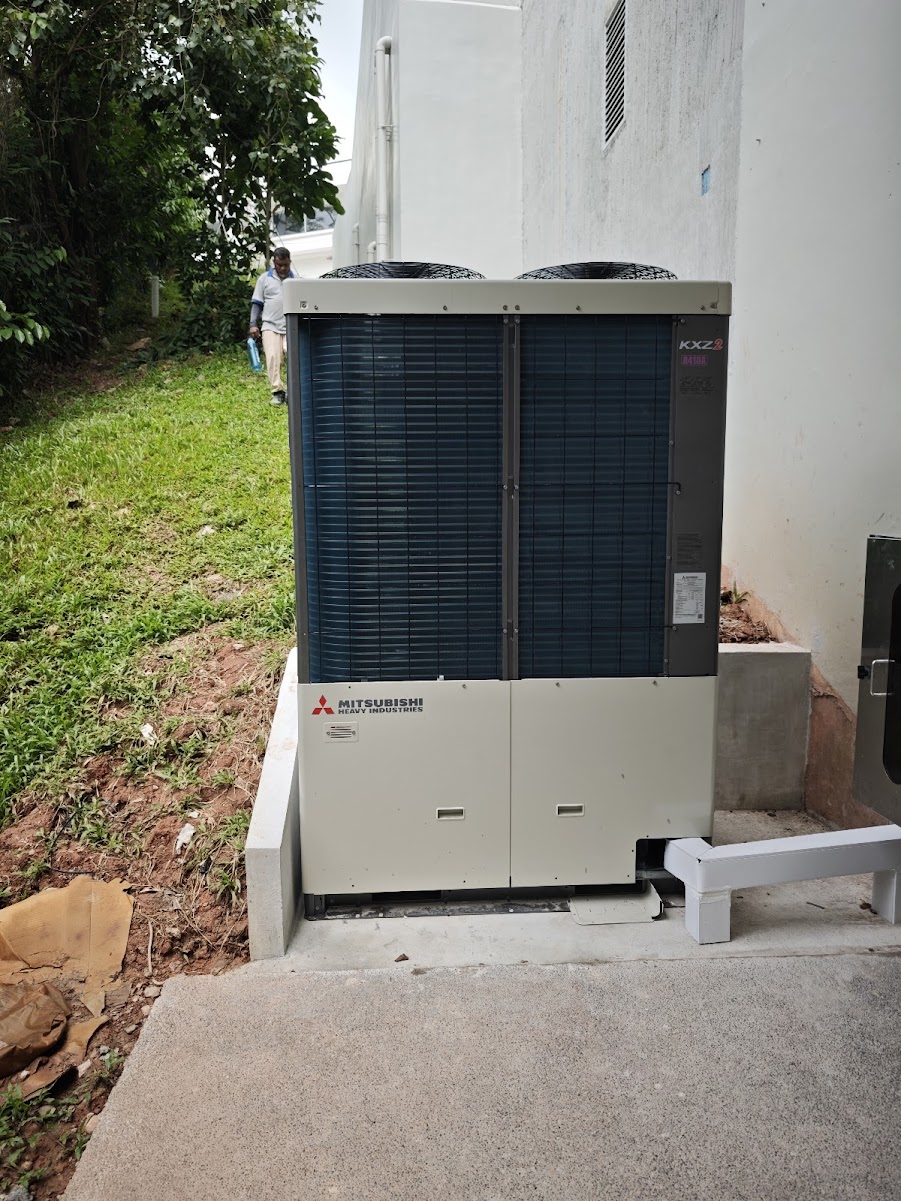

Enabling Village

View project details

Specifications

Series

MHI KXZ2 VRF-T System

Model series

FDC-KXZE2

Outdoor unit type

Heat pump VRF outdoor unit

System capacity range

10 to 60 HP

Refrigerant

R410A

Cooling capacity range

28.0 to 168.0 kW

Heating capacity range

31.5 to 189.0 kW

Model range

FDC280KXZE2 to FDC1680KXZE2

Electrical data

3 phase 380-415 V / 50 Hz and 3 phase 380 V / 60 Hz

Combination range

Single, two-module, and three-module outdoor-unit combinations

Reference source

Mitsubishi Heavy Industries Singapore Super Multi VRF page, KXZ2 Heat Pump page, and 2023 VRF Systems brochure

Typical Applications

• Commercial buildings requiring VRF / VRV zoning
• Office, retail, hospitality, institutional, and mixed-use ACMV projects
• Projects that need scalable outdoor-unit combinations from medium-capacity systems to larger multi-module VRF plants
